Starter Motor - 6 Speed: Notes
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

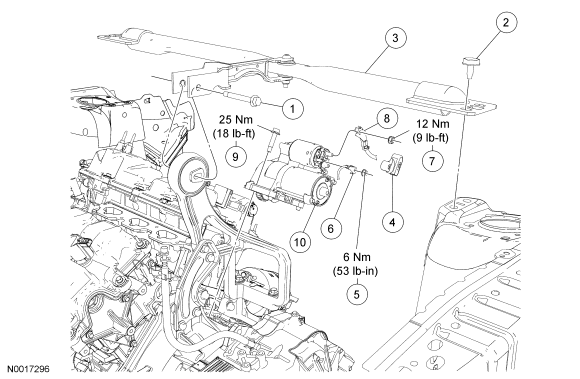

| Item | Part Number | Description |
|---|---|---|
| 1 | W506525 | Transaxle roll restrictor bolt |
| 2 | W705985 | Transaxle roll restrictor cross brace bolt (4 required) |
| 3 | 6F054 | Transaxle roll restrictor cross brace |
| 4 | 11N087 | Starter motor solenoid terminal cover |
| 5 | N805320 | Starter motor solenoid wire nut |
| 6 | 14463 | Starter motor solenoid wire |
| 7 | N805403 | Starter motor solenoid battery cable nut |
| 8 | 14452 | Starter motor solenoid battery cable |
| 9 | W500234 | Starter motor bolt (2 required) |
| 10 | 11000 | Starter motor |
