Transmission Fluid Cooler: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft Continuously Variable Chain Type Transmission Fluid XT-7-QCFT (US); CXT-7-LCF12 (Canada) |
WSS-M2C933-A |
| Motorcraft Premium Automatic Transmission Fluid XT-8-QAW (US); CXT-8-LAW12 (Canada) |
WSS-M2C924-A |
CAUTION:
The clamps on the end of the fluid cooler tubes are glued to the tubes and are not to be removed. The clamps are part of the fluid tubes, removing the clamps from the ends will damage the fluid cooler tubes.

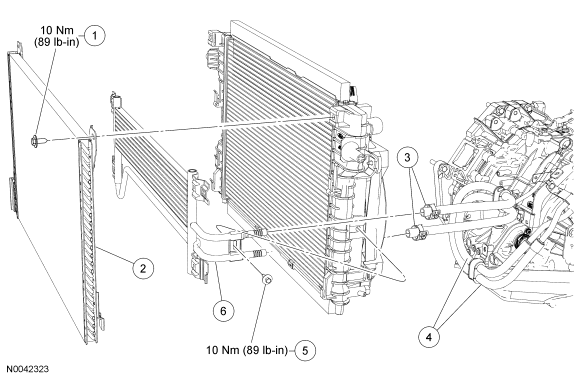

| Item | Part Number | Description |
|---|---|---|
| 1 | N606676-S | A/C condenser retaining bolt |
| 2 | 19710-A | A/C condenser |
| 3 | - | Transmission fluid cooler tube retaining clamps (part of 7H420) |
| 4 | 7H420 | Transmission fluid cooler tubes |
| 5 | N606676-S | Transmission fluid cooler retaining bolt |
| 6 | 7A095 | Transmission fluid cooler |
CAUTION:
The clamps on the end of the fluid cooler tubes are glued to the tubes and are not to be removed. The clamps are part of the fluid tubes, removing the clamps from the ends will damage the fluid cooler tubes.

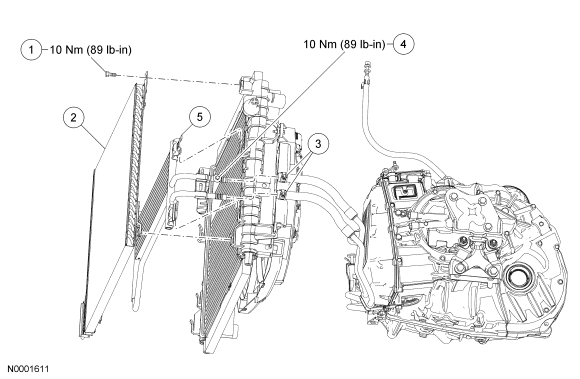

| Item | Part Number | Description |
|---|---|---|
| 1 | N606676-S | A/C condenser retaining bolt |
| 2 | 19710-A | A/C condenser |
| 3 | - | Transmission fluid cooler tube clamps (part of 7H420) |
| 4 | 7H420 | Transmission fluid cooler tube |
| 5 | 7A095 | Transmission fluid cooler |
