Transmission Fluid Cooler Tubes: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft Continuously Variable Chain Type Transmission Fluid XT-7-QCFT (US); CXT-7-LCF12 (Canada) |
WSS-M2C933-A |
| Motorcraft Premium Automatic Transmission Fluid XT-8-QAW (US); CXT-8-LAW12 (Canada) |
WSS-M2C924-A |
CAUTION:
The clamps on the end of the fluid cooler tubes are glued to the tubes and are not to be removed. The clamps are part of the fluid tubes, removing the clamps from the ends will damage the fluid cooler tubes.

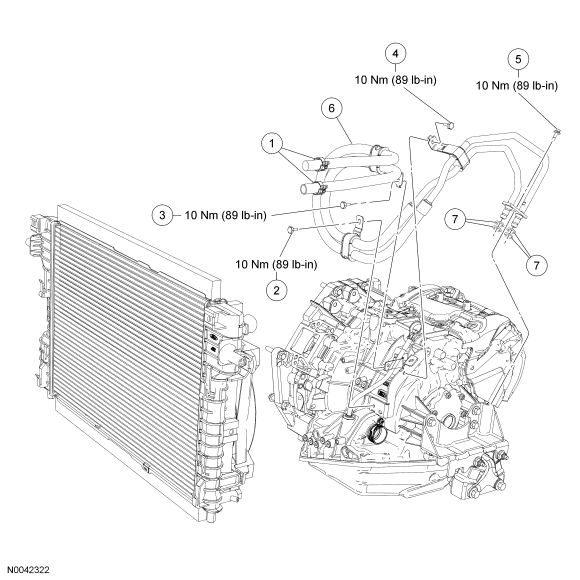

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Transmission fluid cooler tube retaining clamps (part of 7H420) |
| 2 | N606676-S | Fluid cooler tube bracket retaining bolt at the transaxle |
| 3 | N606676-S | Fluid cooler tube bracket retaining bolt at the transaxle |
| 4 | N606676-S | Fluid cooler tube fitting at the transaxle filter housing |
| 5 | 7H420 | Transmission fluid cooler tubes |
| 6 | 7J227 | Transmission fluid cooler tube O-ring seals |
CAUTION:
The clamps on the end of the fluid cooler tubes are glued to the tubes and are not to be removed. The clamps are part of the fluid tubes, removing the clamps from the ends will damage the fluid cooler tubes.

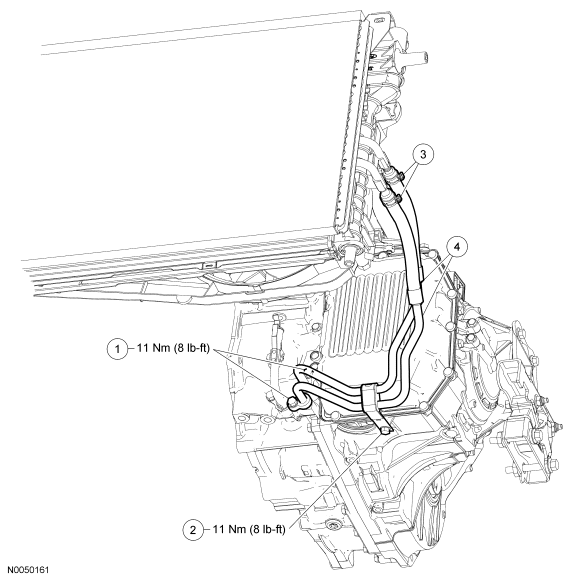

| Item | Part Number | Description |
|---|---|---|
| 1 | 19710-A | Fluid cooler tube fittings at the transaxle |
| 2 | 19710-A | Fluid cooler tube retainer |
| 3 | - | Transmission fluid cooler tube clamps (part of 7H420) |
| 4 | 7H420 | Transmission fluid cooler tubes |
