Power Steering Pump: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

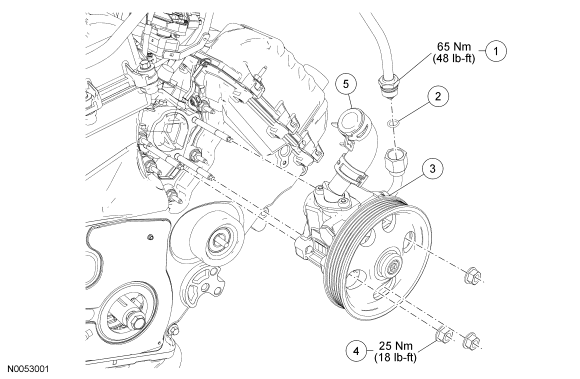

| Item | Part Number | Description |
|---|---|---|
| 1 | 3F524 | Power steering pressure-to-power steering pump fitting |
| 2 | N803257 | Power steering pressure line fitting Teflon® O-ring seal |
| 3 | 3A674 | Power steering pump |
| 4 | W7015825 | Power steering pump nut (3 required) |
| 5 | 3E525 | Power steering pump supply hose |
