Power Steering Fluid Cooler: Notes

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

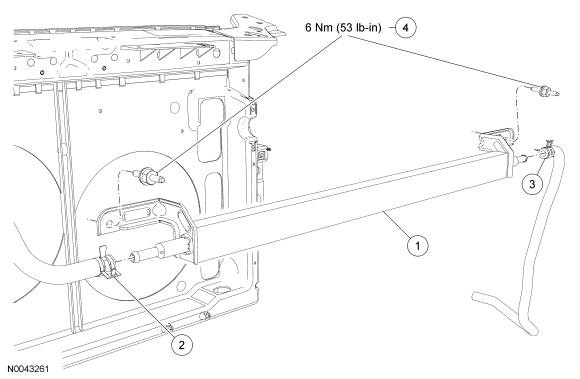

Fig 1: Exploded View Of Power Steering Fluid Cooler With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3D746	Power steering fluid cooler
2	3A713	Power steering gear-to-fluid cooler return hose
3	3493	Power steering fluid cooler-to-reservoir hose
4	W701571	Power steering fluid cooler bolts (2 required)
