Side Air Bag Module Connectors

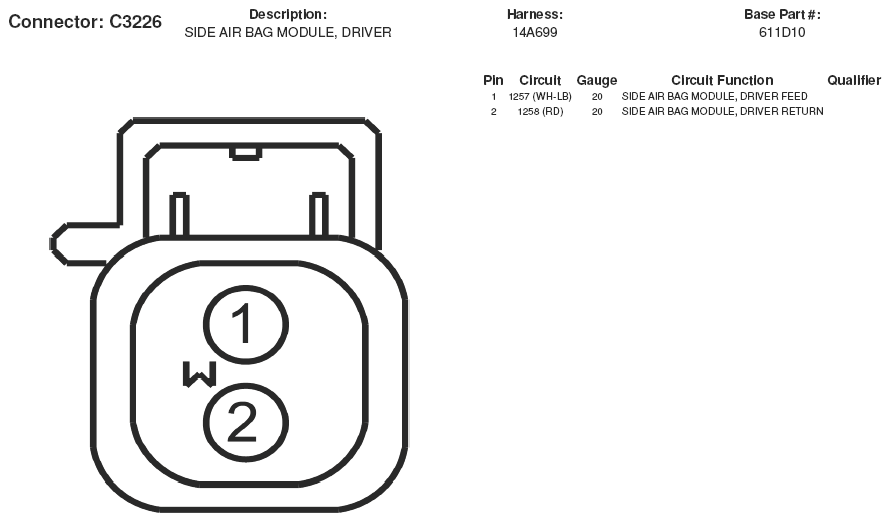

Fig 1: Side Air Bag Module Connector End View (C3226)

G05168917

Courtesy of FORD MOTOR CO.

Fig 2: Side Air Bag Module Connector End View (C3227)

G05168918

Courtesy of FORD MOTOR CO.
