Rear Window Defrost Grid Connector

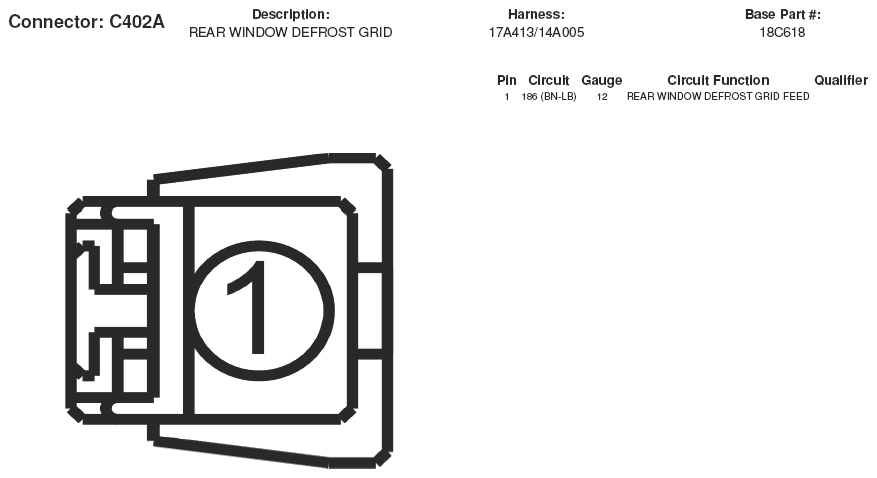

Fig 1: Rear Window Defrost Grid Connector End View (C402A)
G05168771Courtesy of FORD MOTOR CO.
Fig 2: Rear Window Defrost Grid Connector End View (C402B)
G05168772Courtesy of FORD MOTOR CO.
