Power Window Motor Connectors

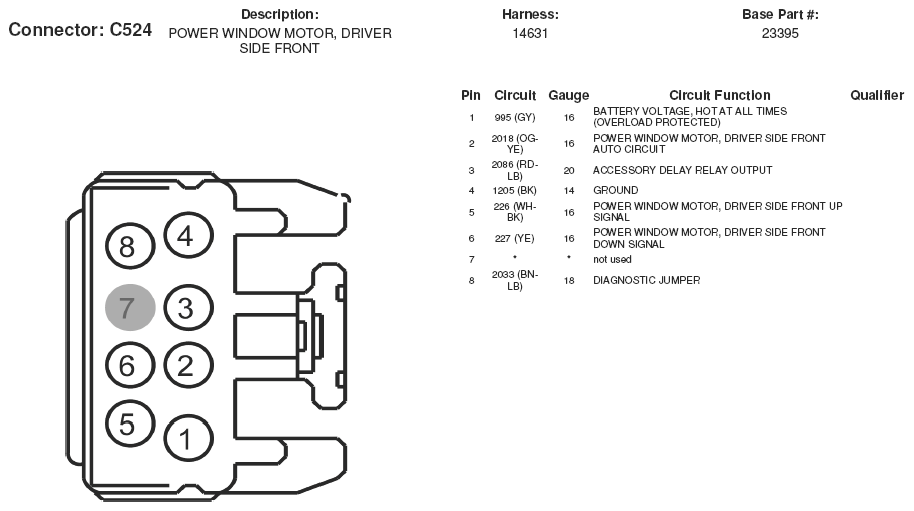

Fig 1: Power Window Motor Connector End View (C524)
G05168795Courtesy of FORD MOTOR CO.
Fig 2: Power Window Motor Connector End View (C608)
G05168804Courtesy of FORD MOTOR CO.
Fig 3: Power Window Motor Connector End View (C703)
G05168811Courtesy of FORD MOTOR CO.
Fig 4: Power Window Motor Connector End View (C803)
G05168817Courtesy of FORD MOTOR CO.
