Passenger Air Bag Module Connectors

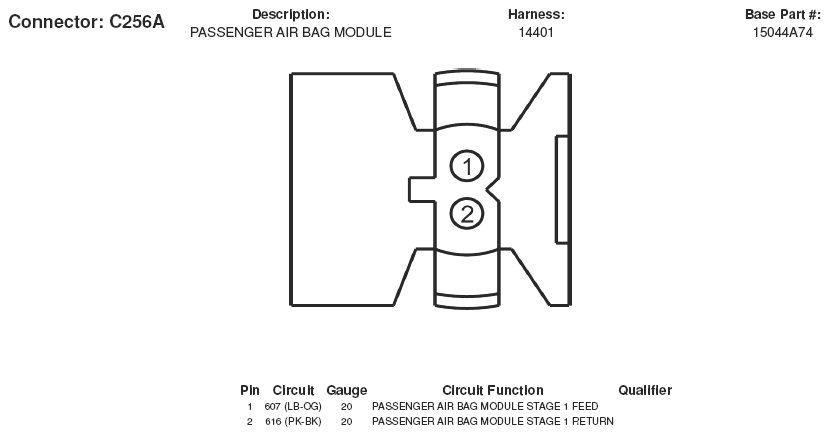

Fig 1: Passenger Air Bag Module Connector End View (C256A)
G05168732Courtesy of FORD MOTOR CO.

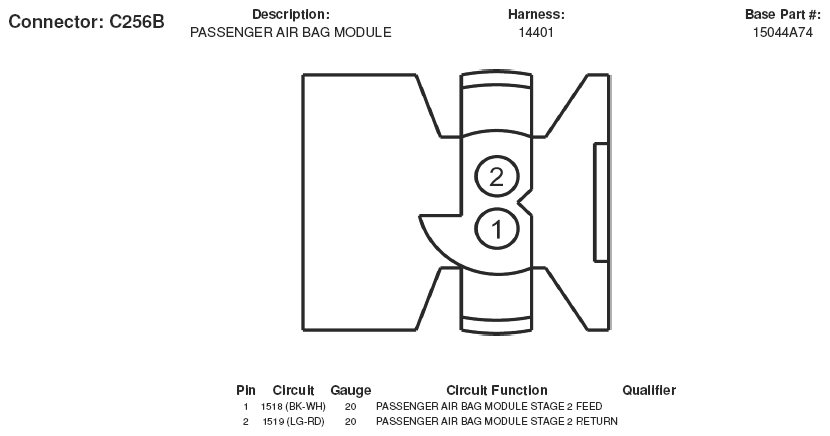

Fig 2: Passenger Air Bag Module Connector End View (C256B)
G05168733Courtesy of FORD MOTOR CO.
