Parking Aid Sensor Connector

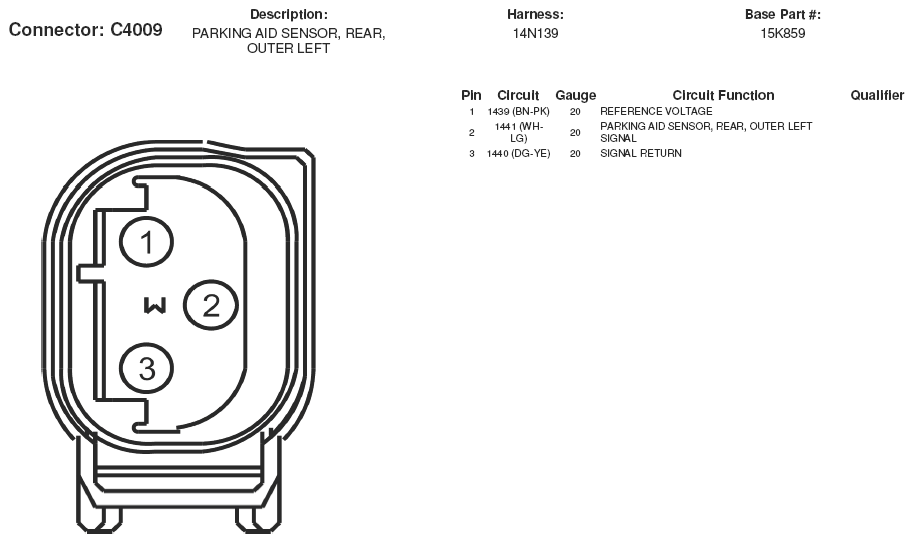

Fig 1: Parking Aid Sensor Connector End View (C4009)
G05168933Courtesy of FORD MOTOR CO.

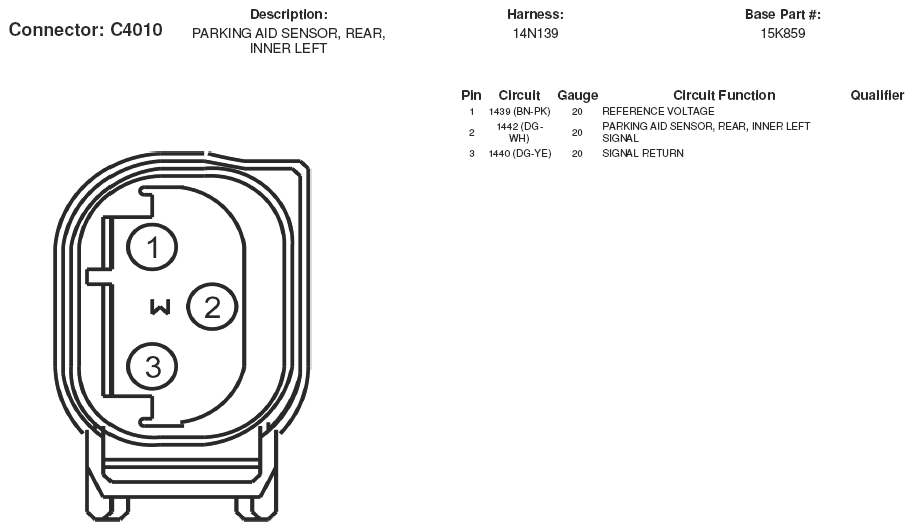

Fig 2: Parking Aid Sensor Connector End View (C4010)
G05168934Courtesy of FORD MOTOR CO.

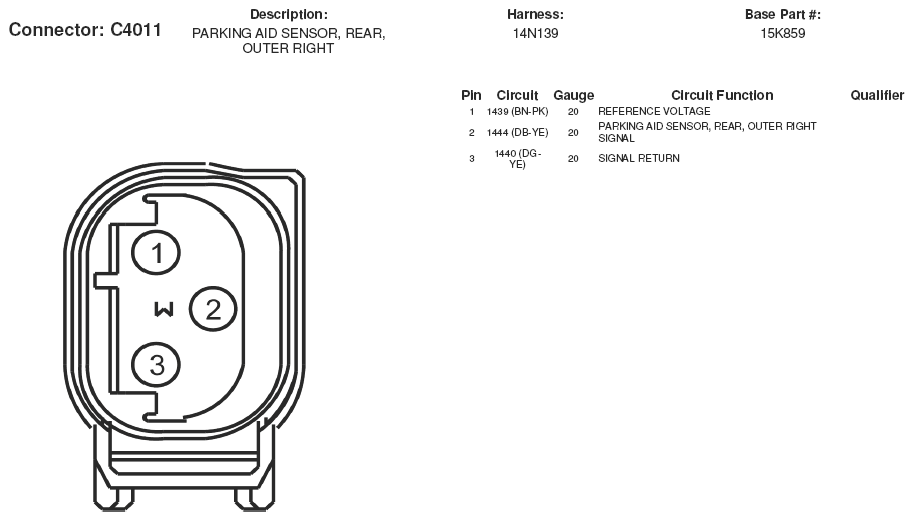

Fig 3: Parking Aid Sensor Connector End View (C4011)
G05168935Courtesy of FORD MOTOR CO.

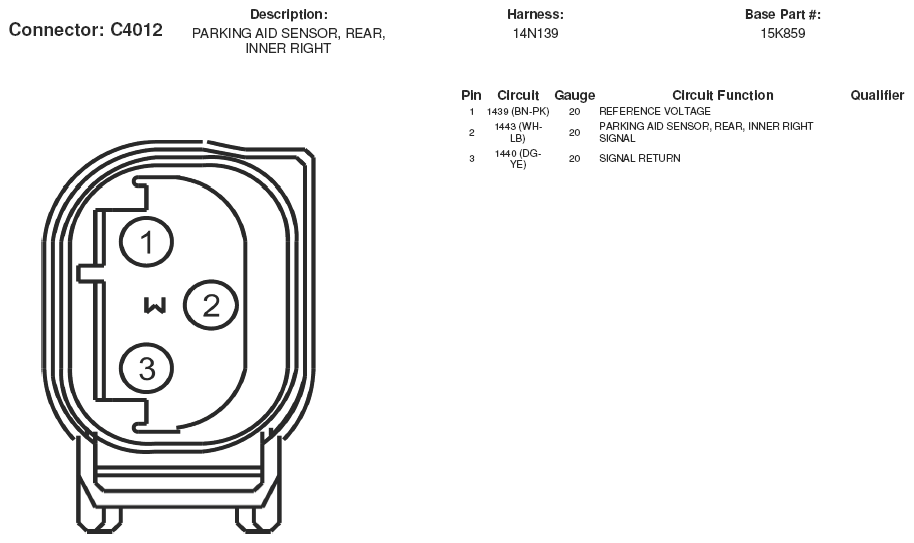

Fig 4: Parking Aid Sensor Connector End View (C4012)
G05168936Courtesy of FORD MOTOR CO.
