Lamp Assembly Connectors
Lamp Assembly Connectors
Fig 1: Lamp Assembly Connector End View (C414)
Courtesy of FORD MOTOR CO.

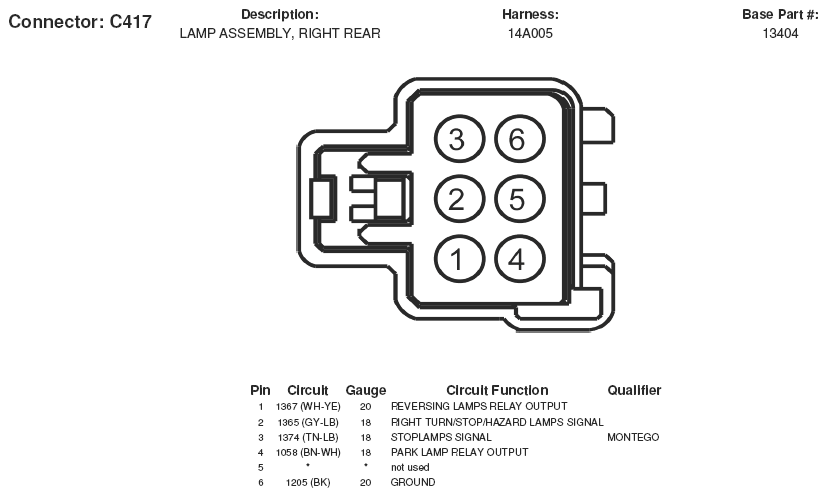

Fig 2: Lamp Assembly Connector End View (C417)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
