Inline Connectors

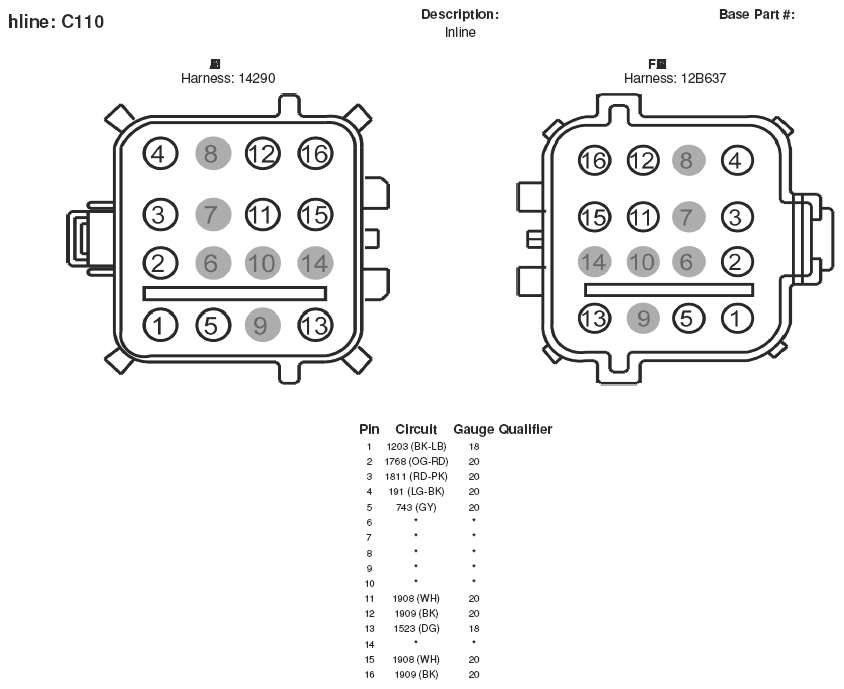

Fig 1: Inline Connector End View (C110)

G05168668

Courtesy of FORD MOTOR CO.

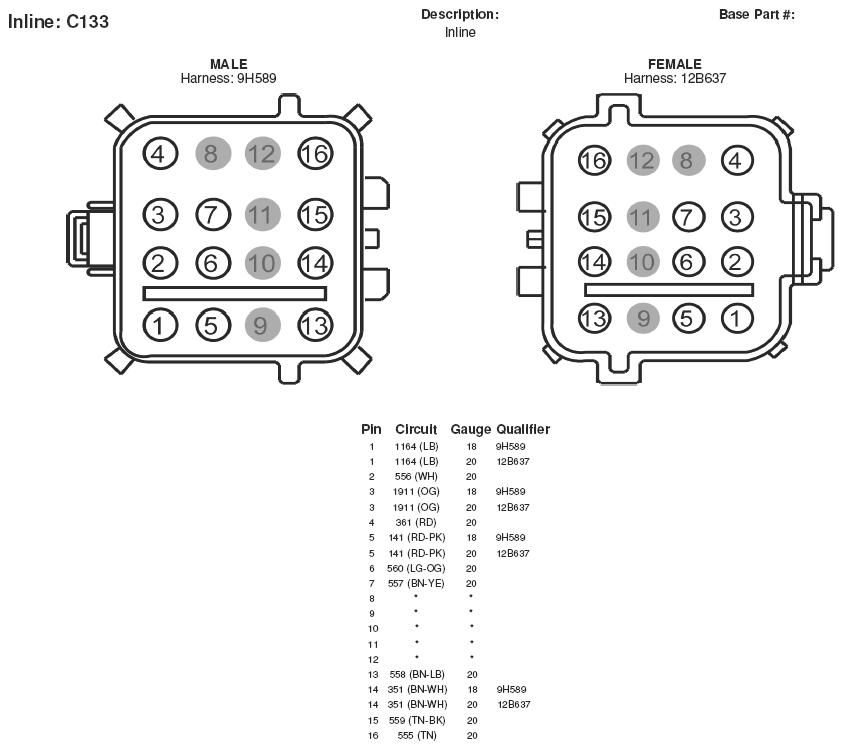

Fig 2: Inline Connector End View (C133)

G05168681

Courtesy of FORD MOTOR CO.

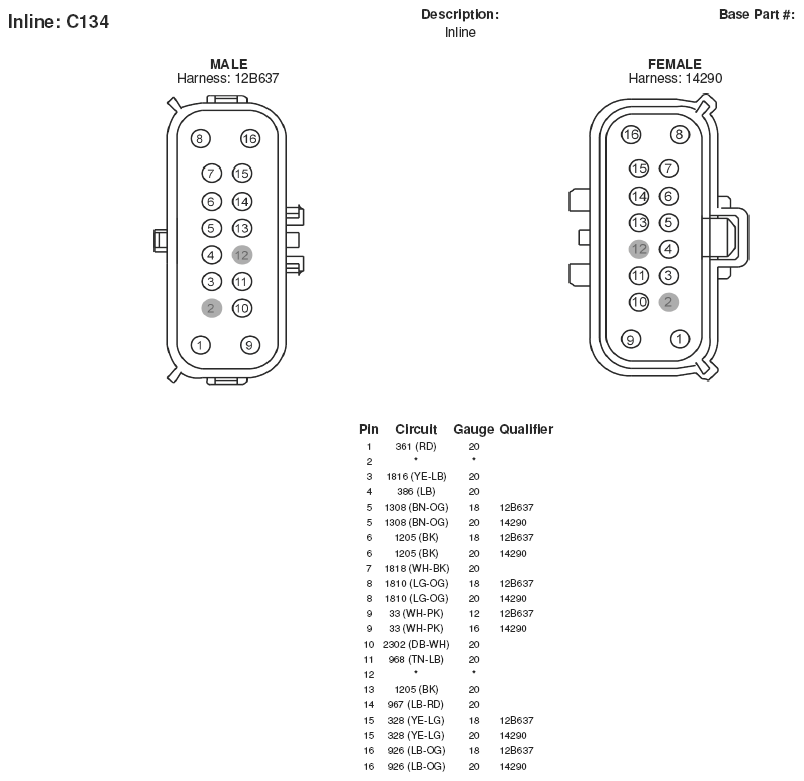

Fig 3: Inline Connector End View (C134)

G05168682

Courtesy of FORD MOTOR CO.

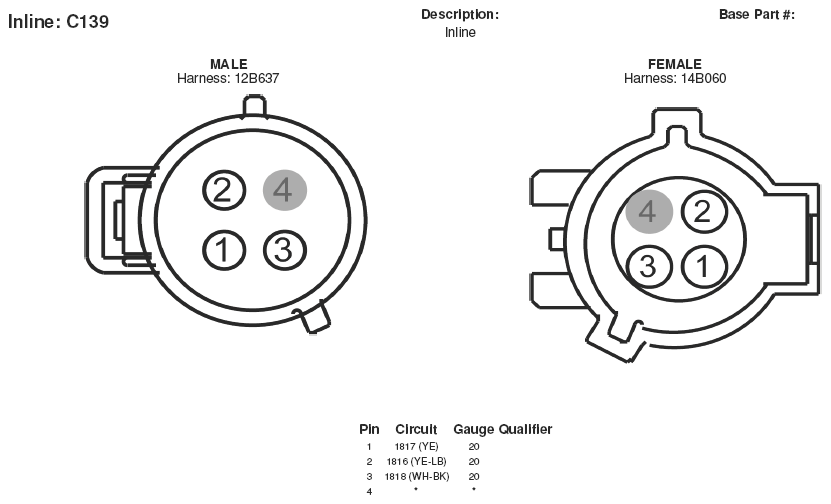

Fig 4: Inline Connector End View (C139)

G05168686

Courtesy of FORD MOTOR CO.

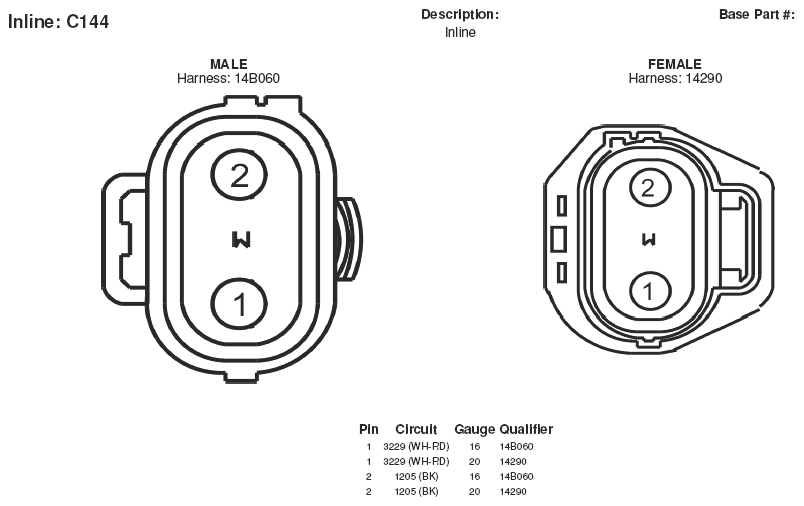

Fig 5: Inline Connector End View (C144)

G05168689

Courtesy of FORD MOTOR CO.

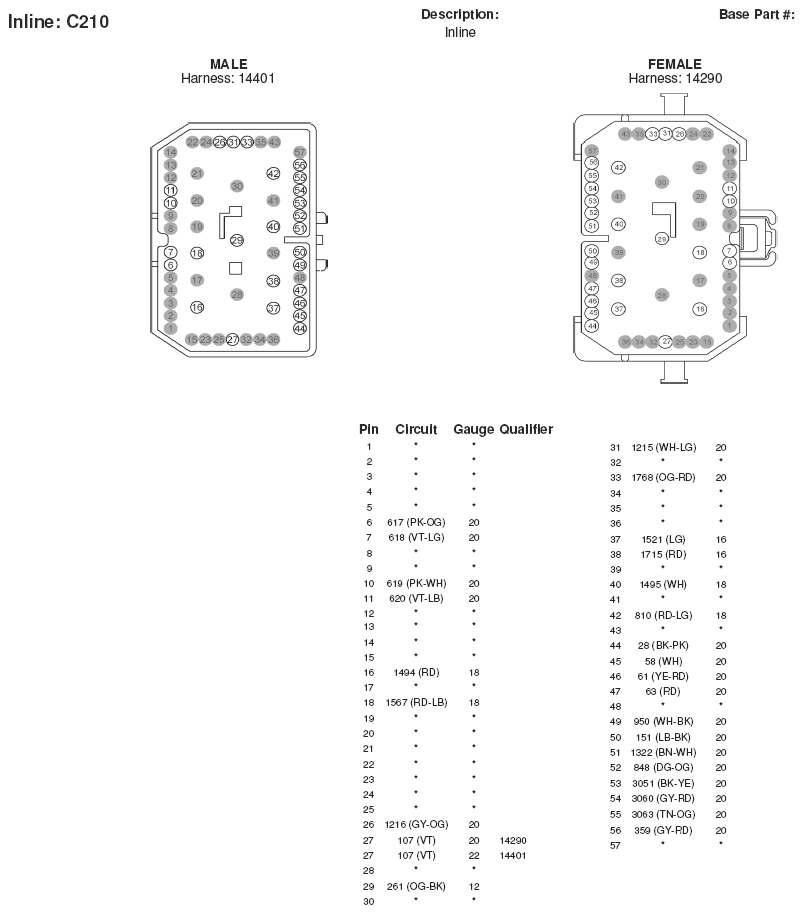

Fig 6: Inline Connector End View (C210)

G05168715

Courtesy of FORD MOTOR CO.

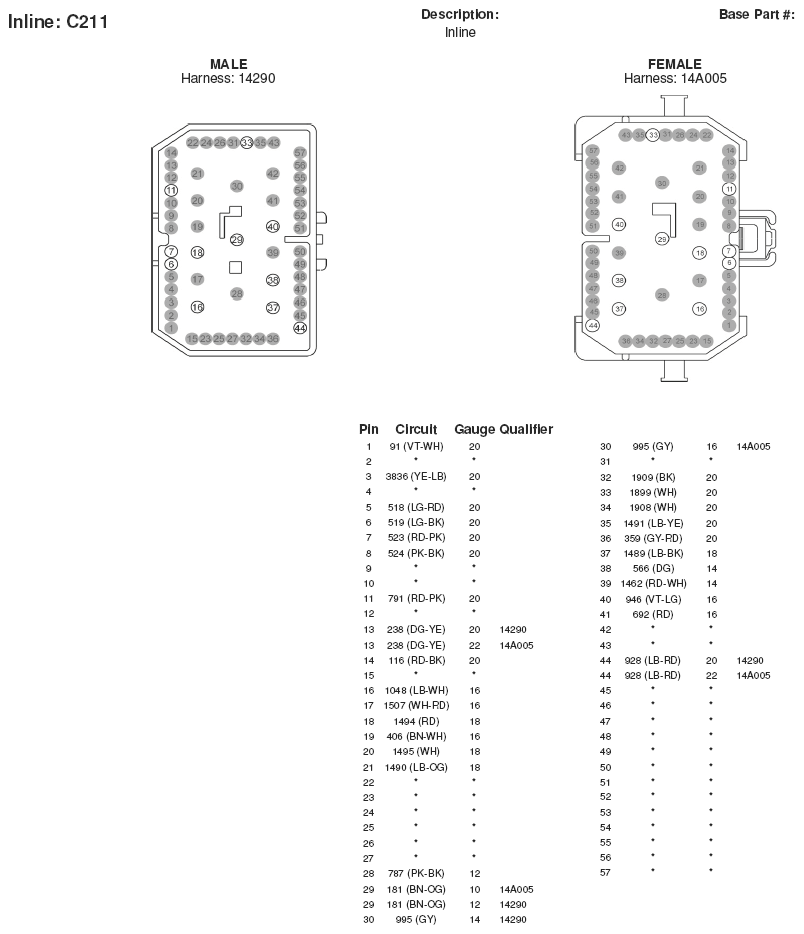

Fig 7: Inline Connector End View (C211)

G05168716

Courtesy of FORD MOTOR CO.

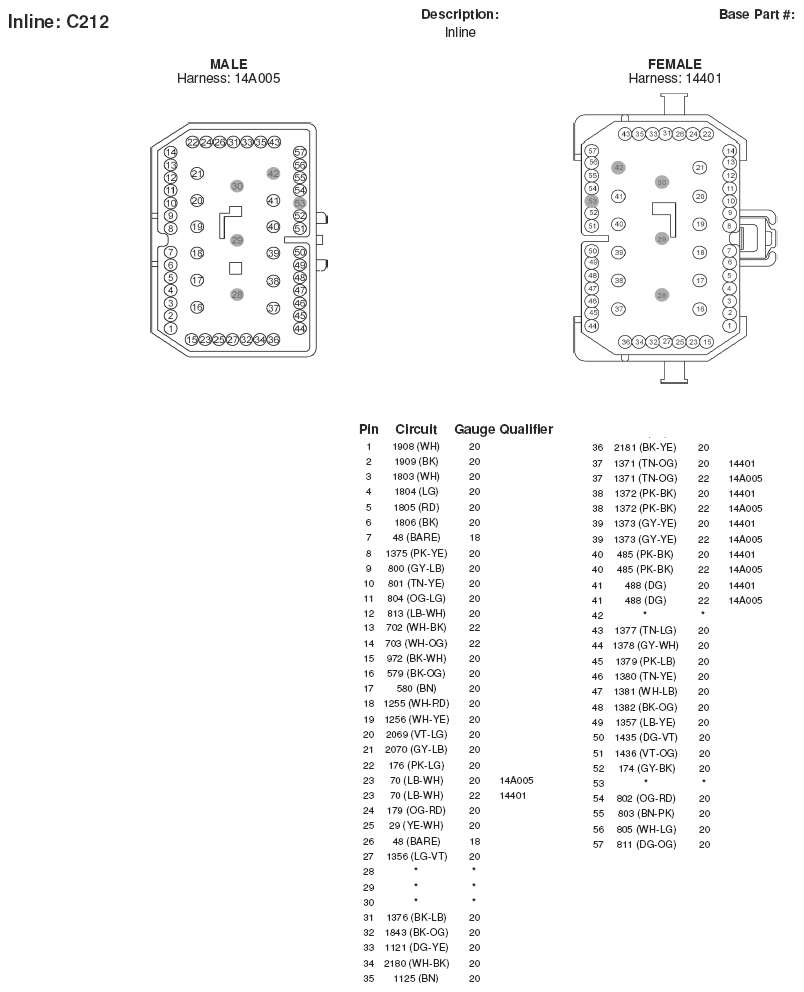

Fig 8: Inline Connector End View (C212)

G05168717

Courtesy of FORD MOTOR CO.

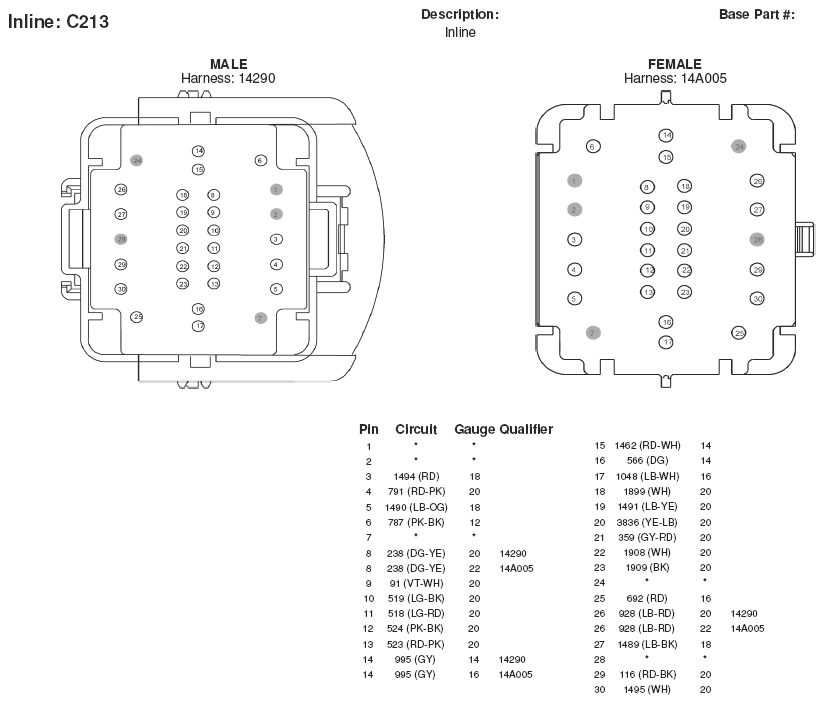

Fig 9: Inline Connector End View (C213)

G05168718

Courtesy of FORD MOTOR CO.

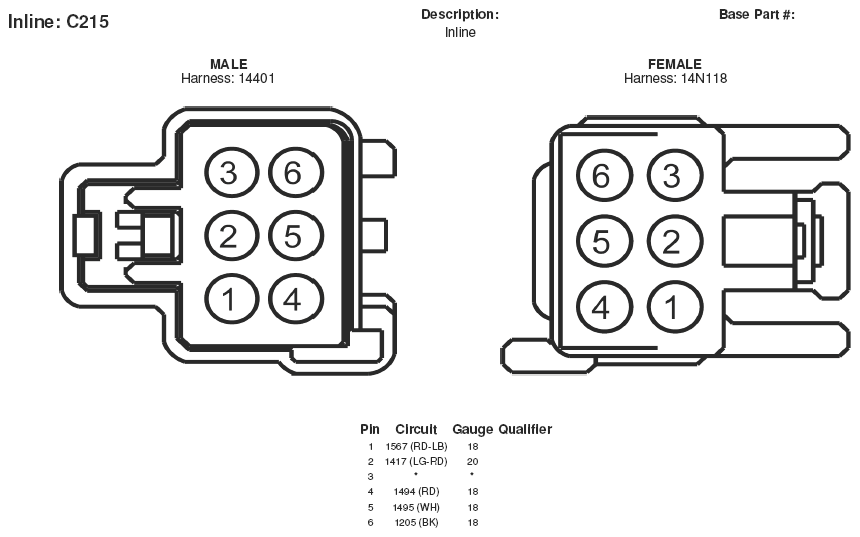

Fig 10: Inline Connector End View (C215)

G05168719

Courtesy of FORD MOTOR CO.

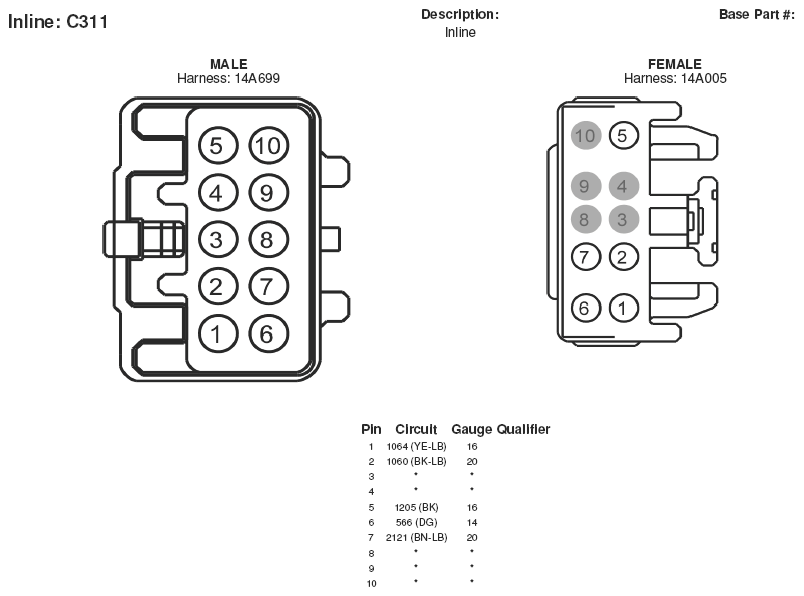

Fig 11: Inline Connector End View (C311)

G05168744

Courtesy of FORD MOTOR CO.

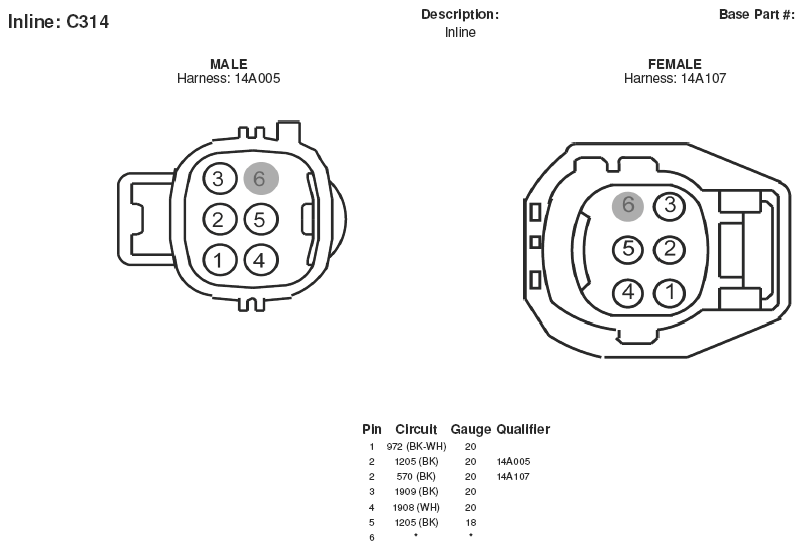

Fig 12: Inline Connector End View (C314)

G05168745

Courtesy of FORD MOTOR CO.

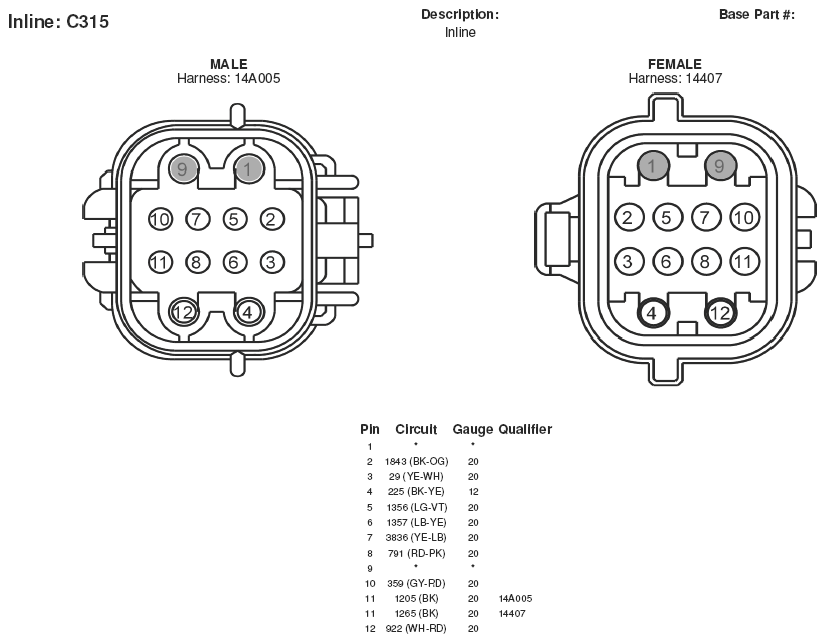

Fig 13: Inline Connector End View (C315)

G05168746

Courtesy of FORD MOTOR CO.

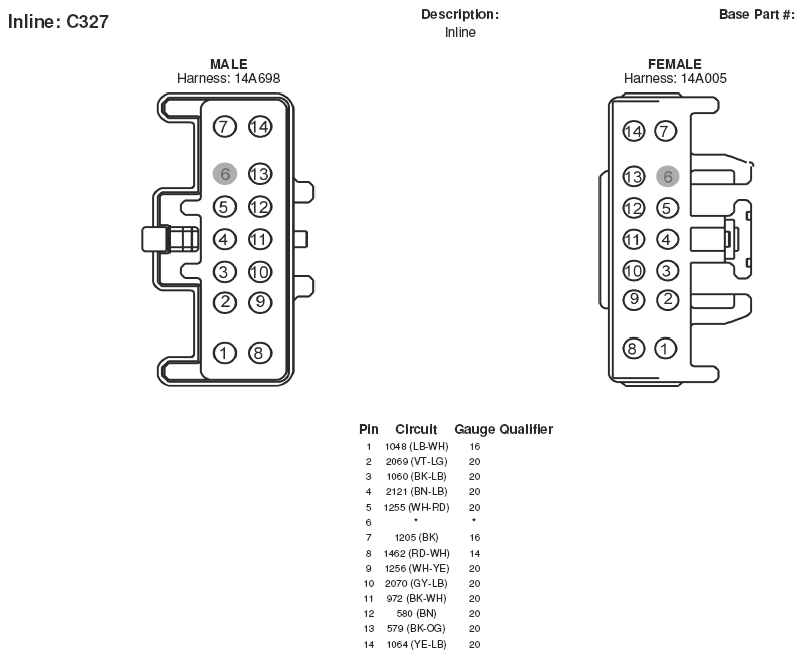

Fig 14: Inline Connector End View (C327)

G05168747

Courtesy of FORD MOTOR CO.

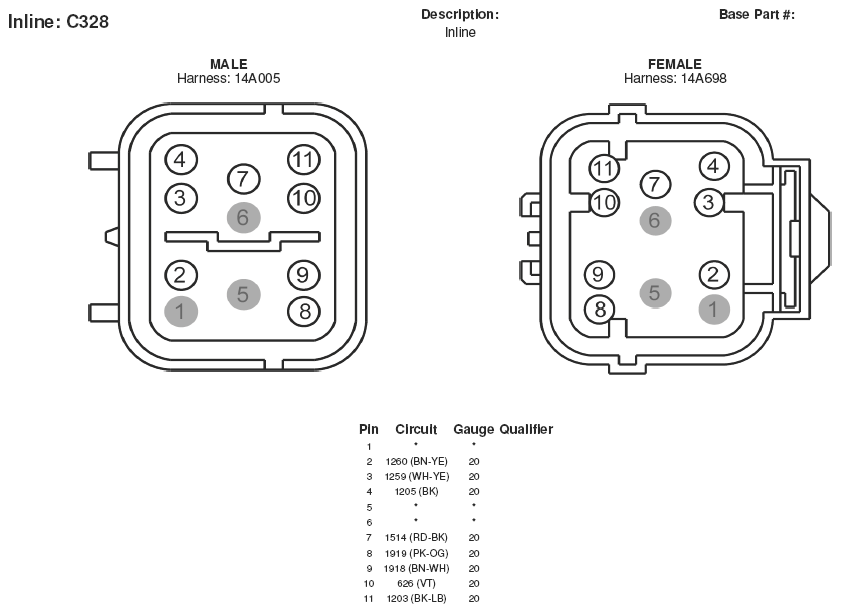

Fig 15: Inline Connector End View (C328)

G05168748

Courtesy of FORD MOTOR CO.

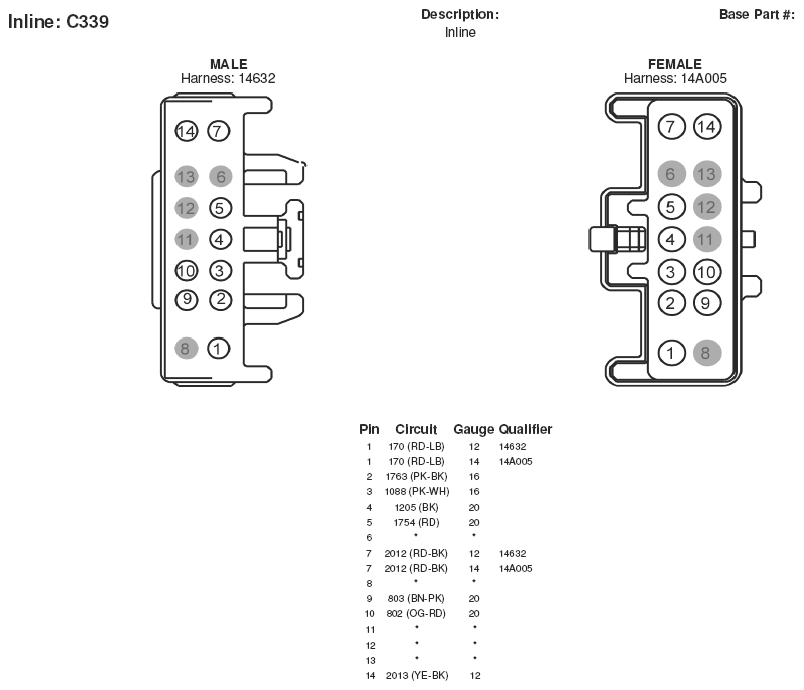

Fig 16: Inline Connector End View (C339)

G05168753

Courtesy of FORD MOTOR CO.

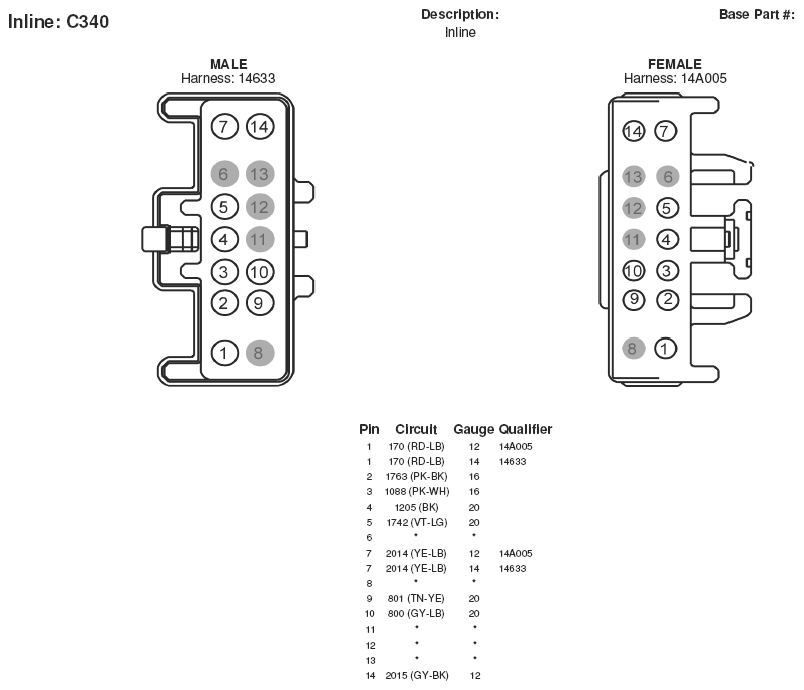

Fig 17: Inline Connector End View (C340)

G05168754

Courtesy of FORD MOTOR CO.

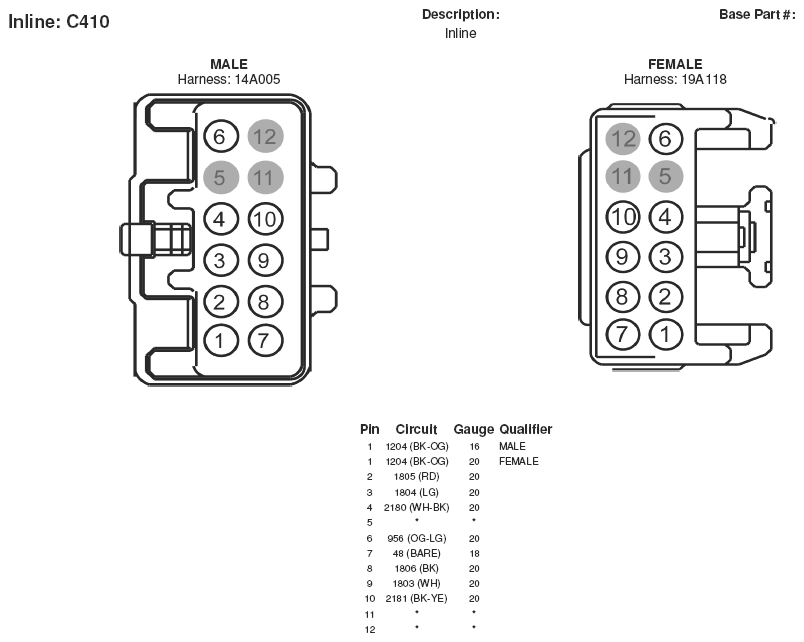

Fig 18: Inline Connector End View (C410)

G05168773

Courtesy of FORD MOTOR CO.

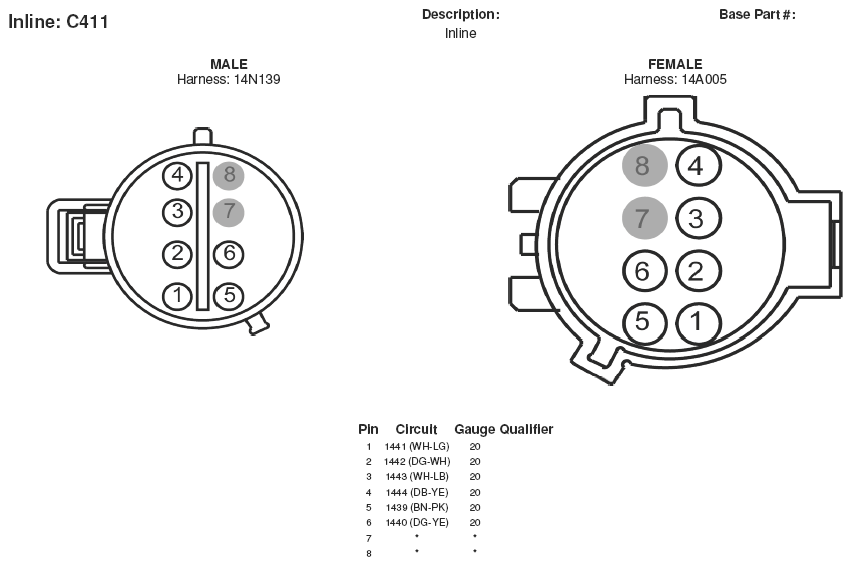

Fig 19: Inline Connector End View (C411)

G05168774

Courtesy of FORD MOTOR CO.

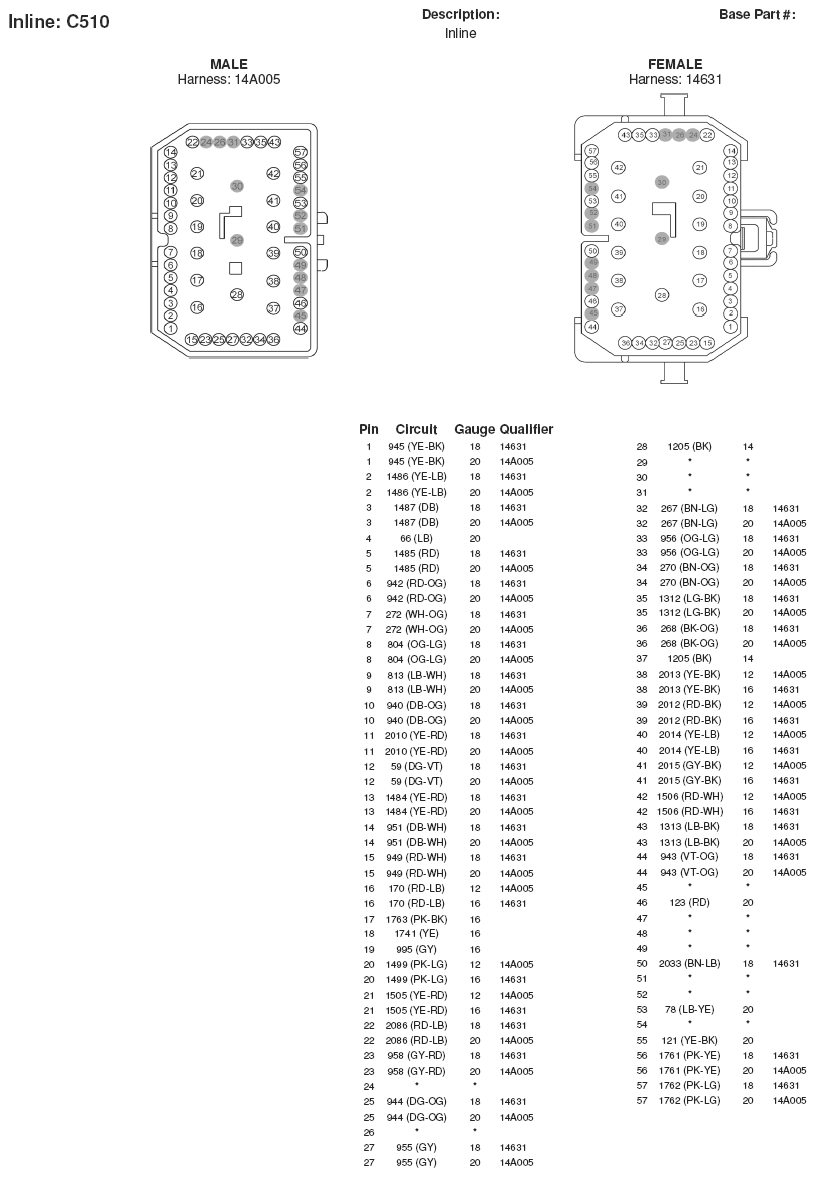

Fig 20: Inline Connector End View (C510)

G05168791

Courtesy of FORD MOTOR CO.

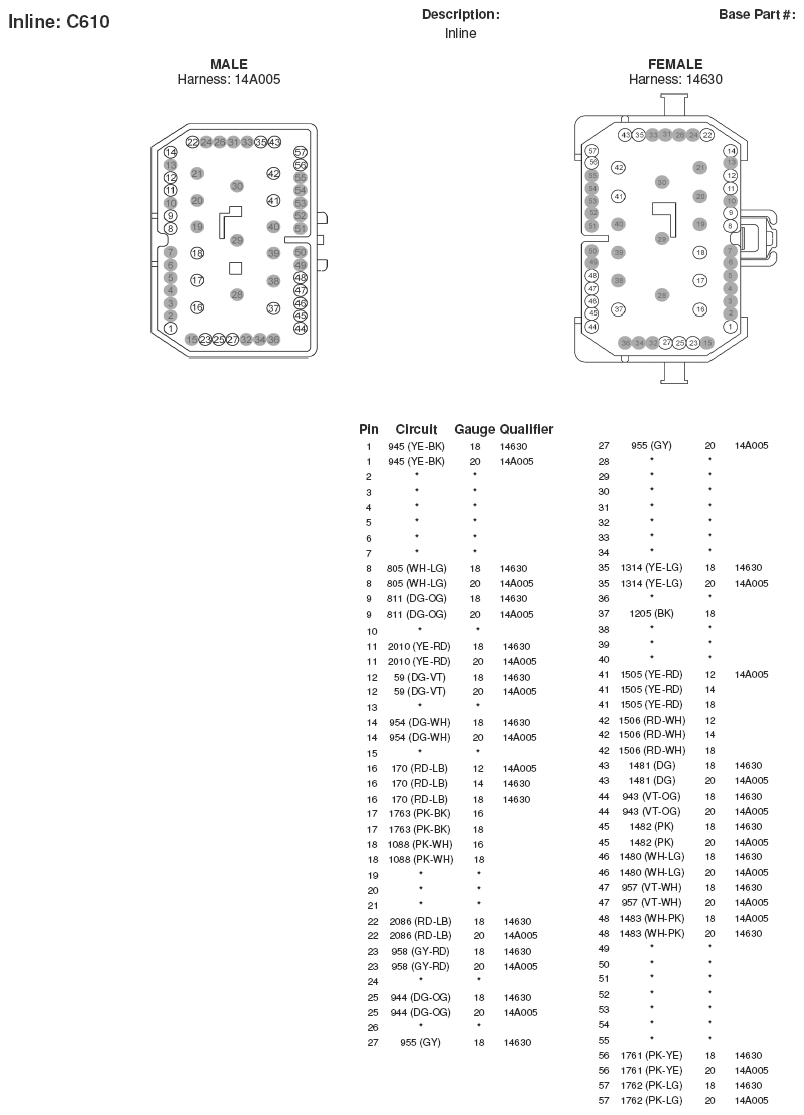

Fig 21: Inline Connector End View (C610)

G05168805

Courtesy of FORD MOTOR CO.

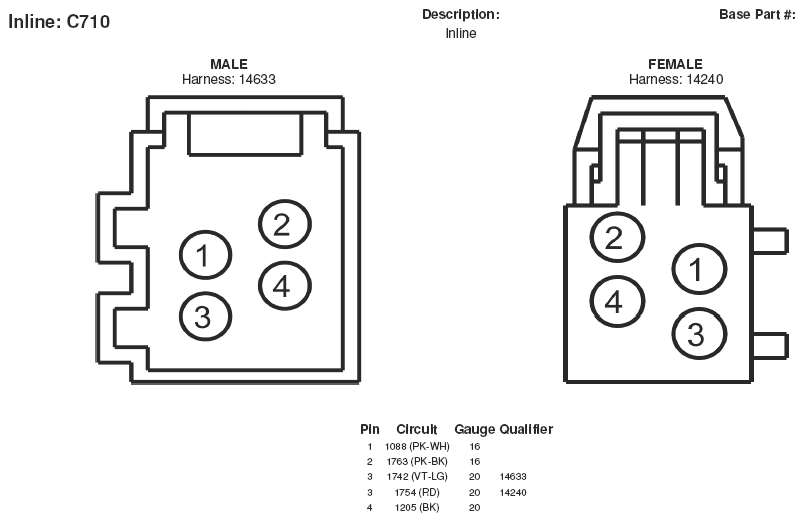

Fig 22: Inline Connector End View (C710)

G05168813

Courtesy of FORD MOTOR CO.

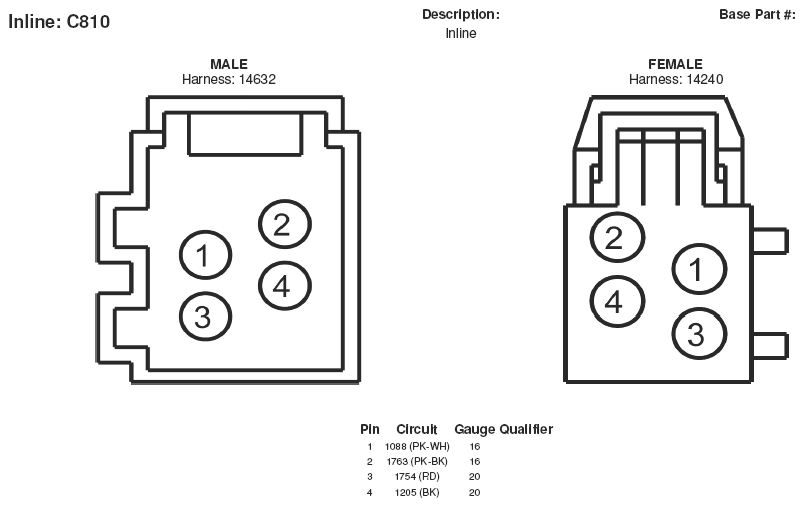

Fig 23: Inline Connector End View (C810)

G05168819

Courtesy of FORD MOTOR CO.

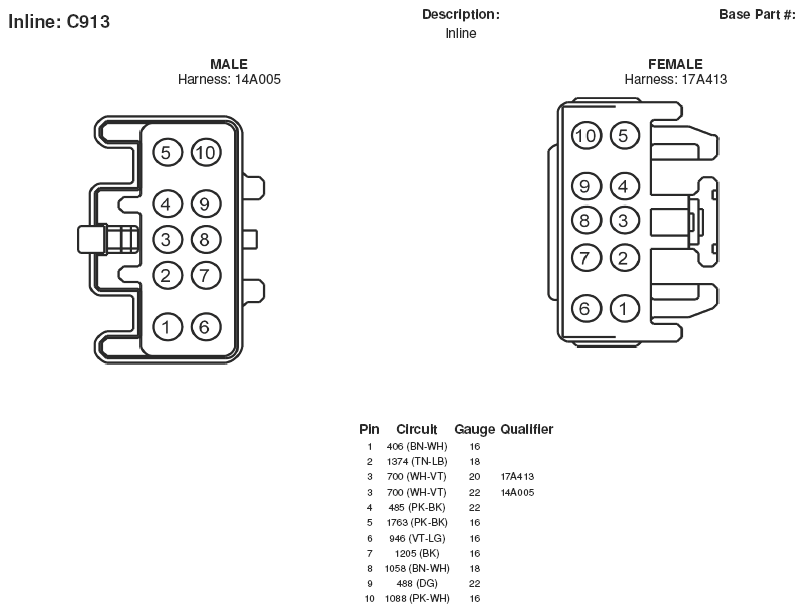

Fig 24: Inline Connector End View (C913)

G05168826

Courtesy of FORD MOTOR CO.

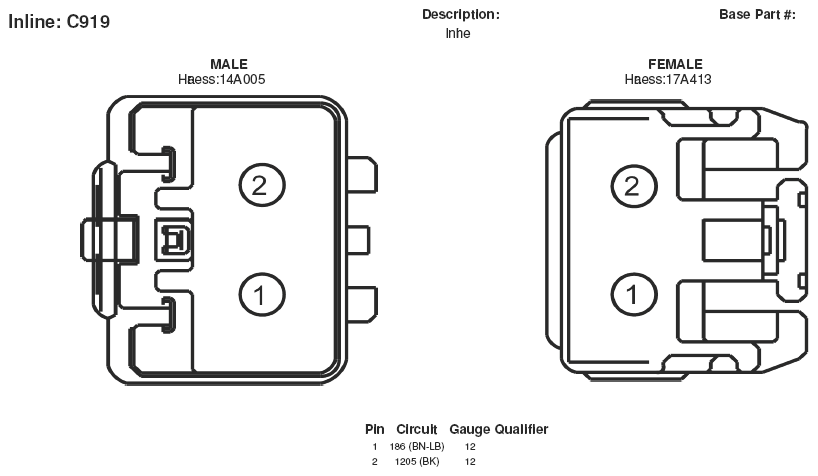

Fig 25: Inline Connector End View (C919)

G05168827

Courtesy of FORD MOTOR CO.

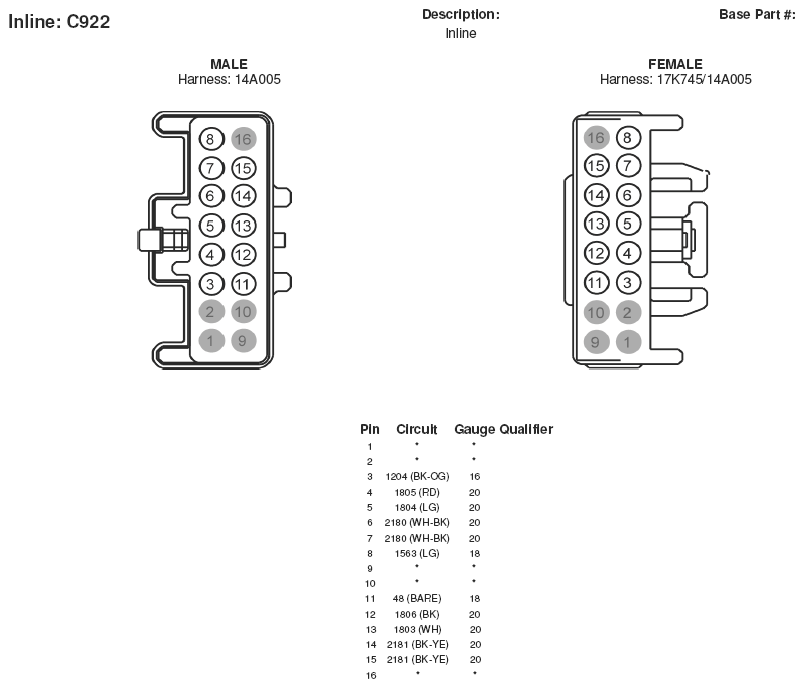

Fig 26: Inline Connector End View (C922)

G05168829

Courtesy of FORD MOTOR CO.

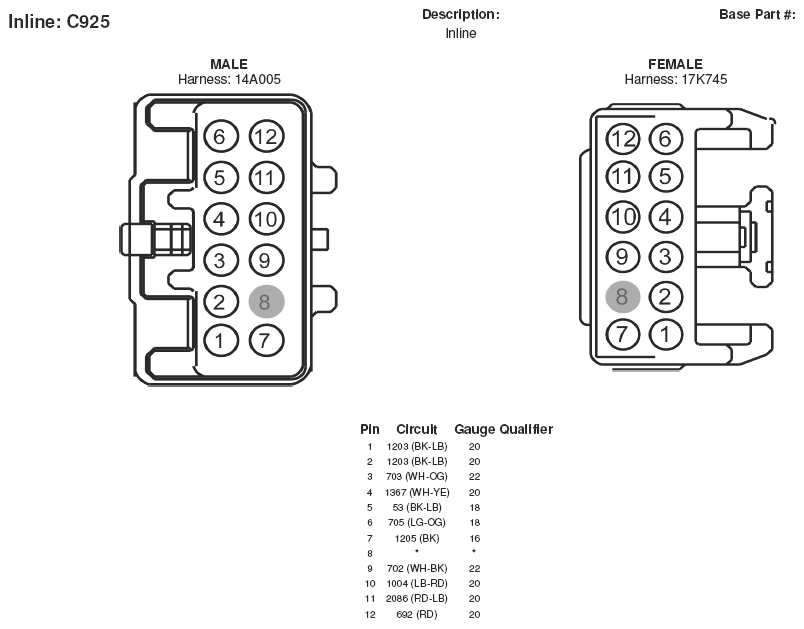

Fig 27: Inline Connector End View (C925)

G05168830

Courtesy of FORD MOTOR CO.

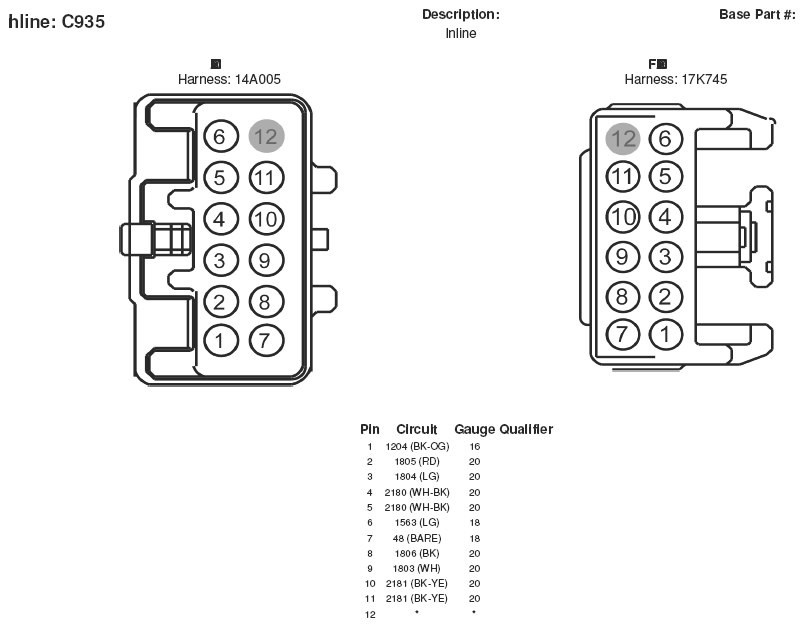

Fig 28: Inline Connector End View (C935)

G05168833

Courtesy of FORD MOTOR CO.

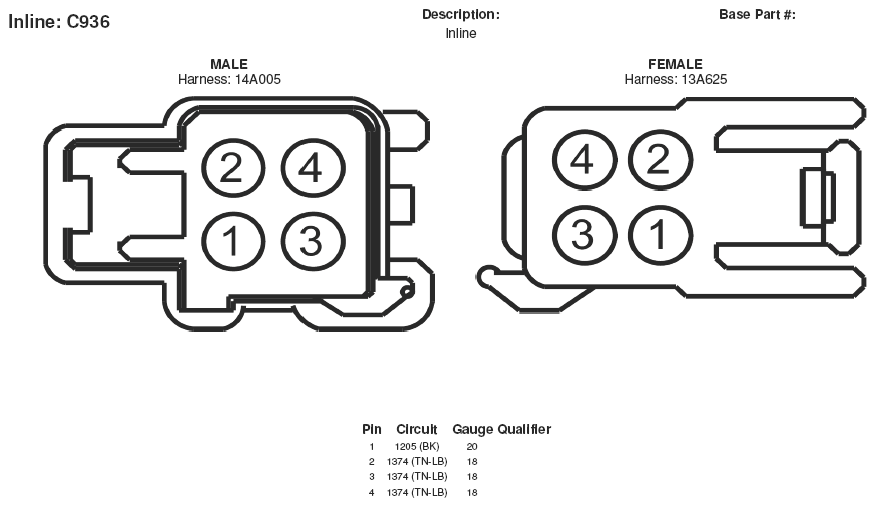

Fig 29: Inline Connector End View (C936)

G05168834

Courtesy of FORD MOTOR CO.

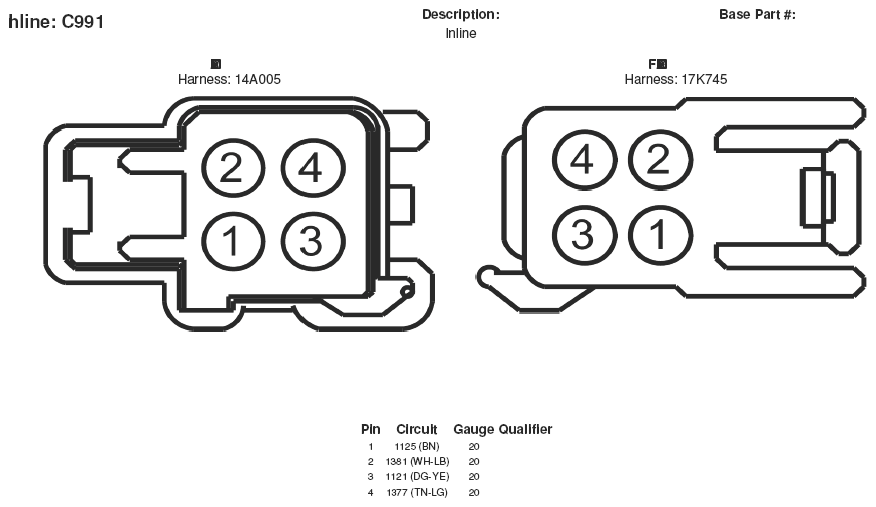

Fig 30: Inline Connector End View (C991)

G05168838

Courtesy of FORD MOTOR CO.

Fig 31: Inline Connector End View (C3007)

G05168894

Courtesy of FORD MOTOR CO.

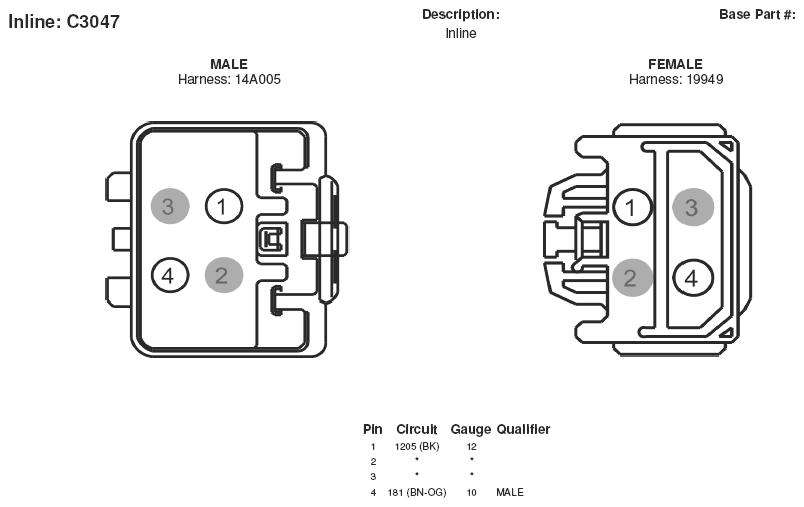

Fig 32: Inline Connector End View (C3047)

G05168899

Courtesy of FORD MOTOR CO.

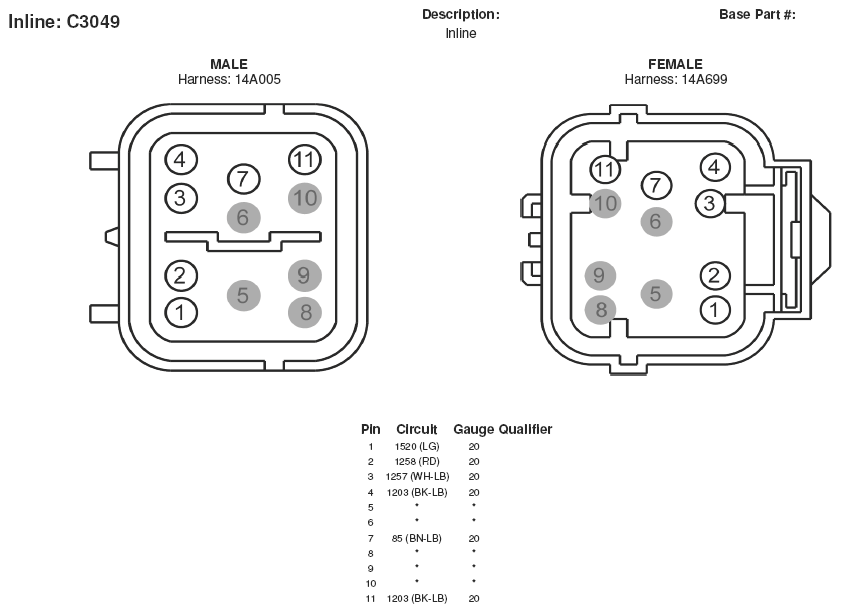

Fig 33: Inline Connector End View (C3049)

G05168900

Courtesy of FORD MOTOR CO.

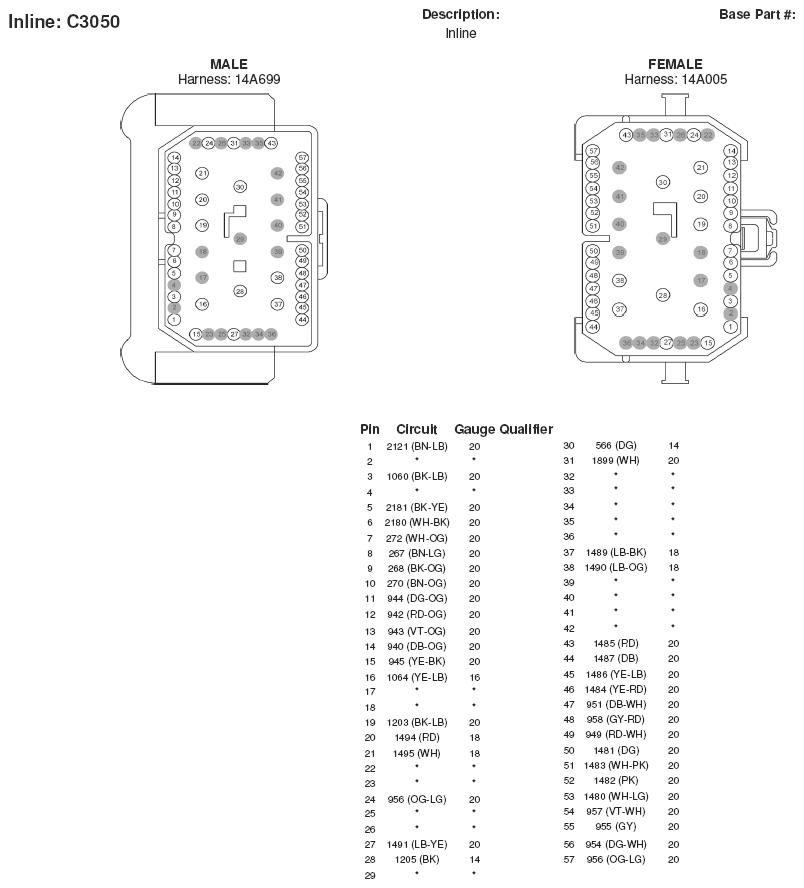

Fig 34: Inline Connector End View (C3050)

G05168901

Courtesy of FORD MOTOR CO.
