Generator Connectors

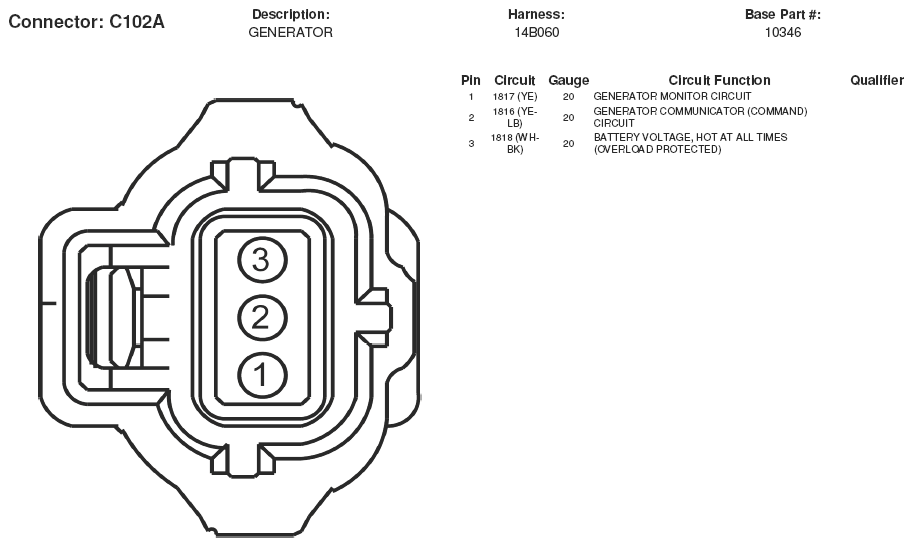

Fig 1: Generator Connector End View (C102A)
G05168664Courtesy of FORD MOTOR CO.
Fig 2: Generator Connector End View (C102B)
G05168665Courtesy of FORD MOTOR CO.

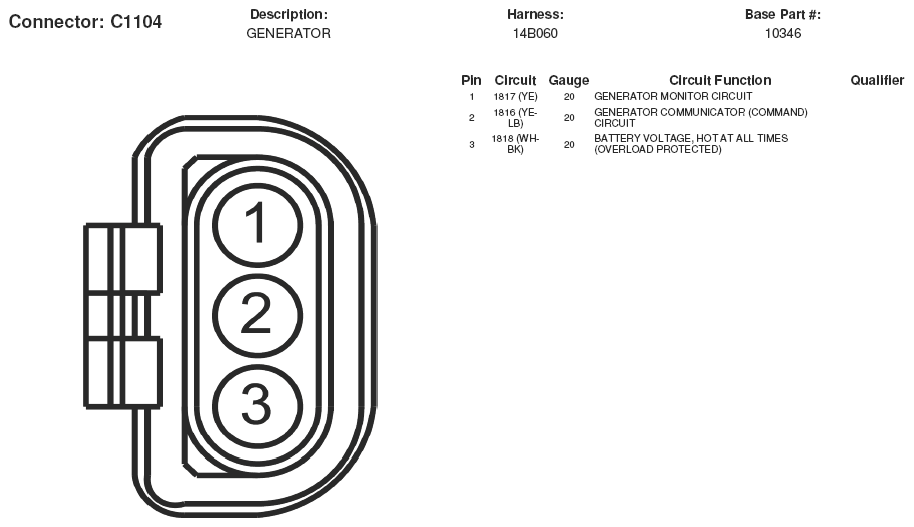

Fig 3: Generator Connector End View (C1104)
G05168853Courtesy of FORD MOTOR CO.
