Door Lock Switch Connector
Door Lock Switch Connector

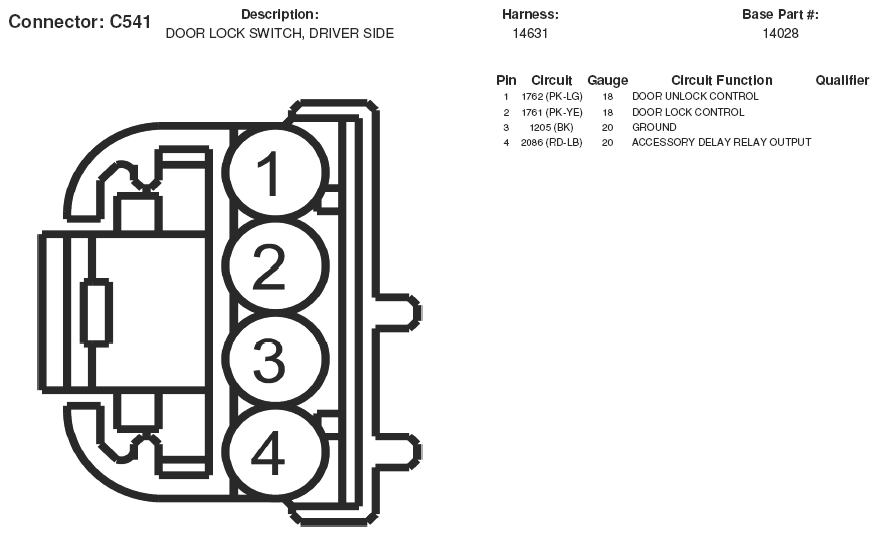

Fig 1: Door Lock Switch Connector End View (C541)
Courtesy of FORD MOTOR CO.

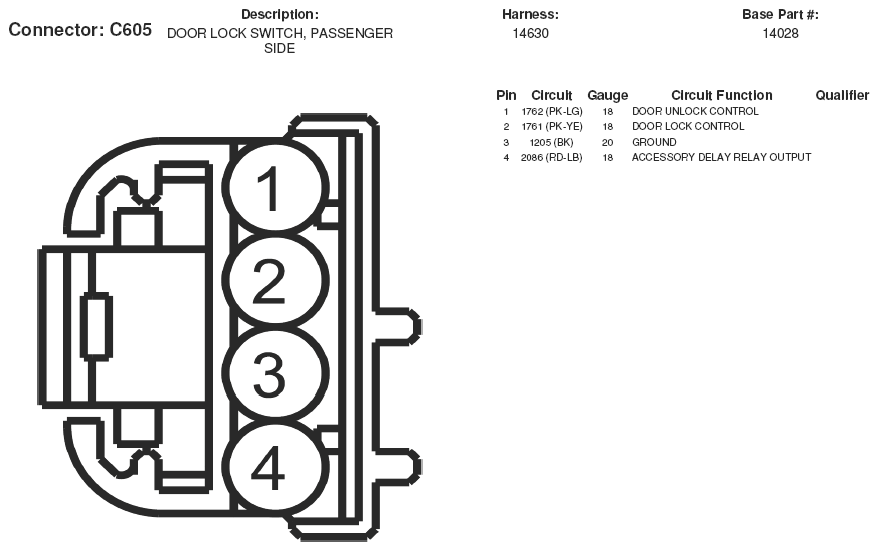

Fig 2: Door Lock Switch Connector End View (C605)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
