A/C Pressure Transducer Sensor Connector

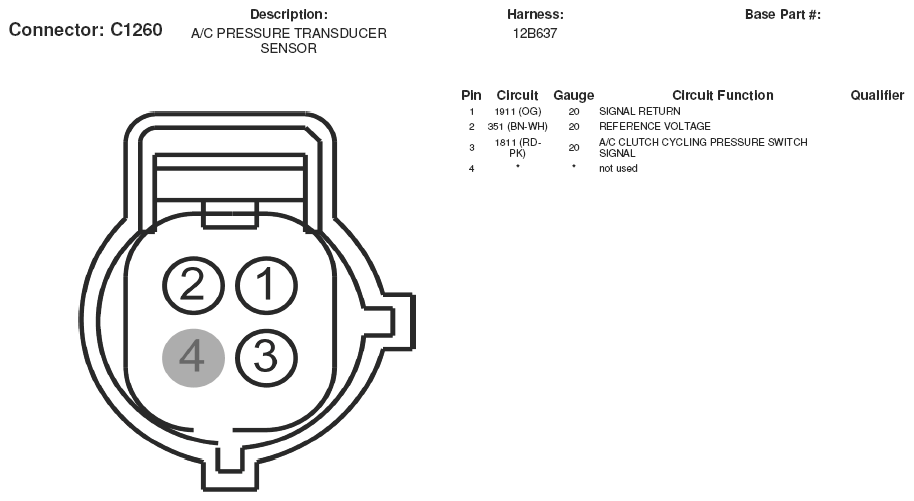

Fig 1: A/C Pressure Transducer Sensor Connector End View (C1260)

G05168862

Courtesy of FORD MOTOR CO.
