Fuel Rail Pressure and Temperature Sensor: Notes

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

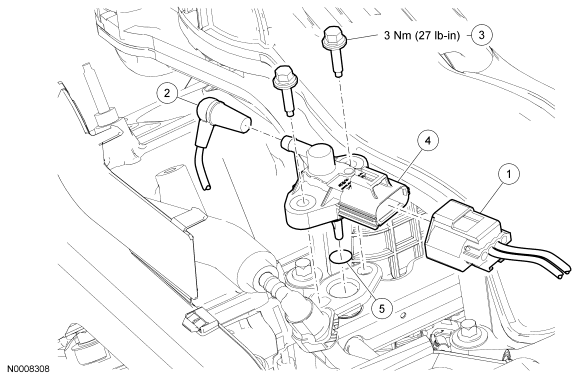

Fig 1: Exploded View Of Fuel Rail Pressure & Temperature Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Fuel rail pressure and temperature sensor electrical connector
2	9E498	Fuel rail pressure and temperature sensor vacuum connector
3	W711398	Fuel rail pressure and temperature sensor bolt (2 required)
4	9G756	Fuel rail pressure and temperature sensor
5	-	O-ring seal (part of 9G756)
