Crankshaft Position (CKP) Sensor: Notes

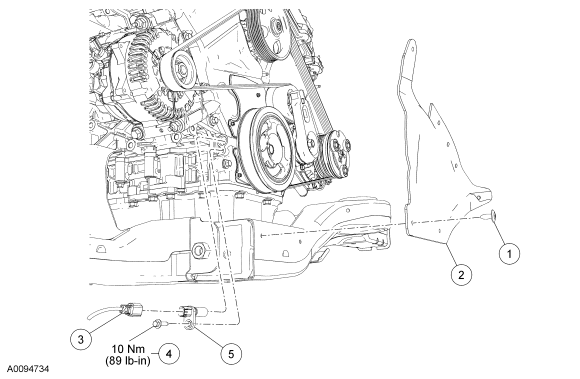

Fig 1: Exploded View Of Crankshaft Position CKP Sensor With Torque Specifications
GF0017248Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W706092 Pin-type retainer (7 required)
2 10317 Splash shield
3 14464 Crankshaft position (CKP) sensor electrical connector
4 W500214 CKP sensor bolt
5 6C315 CKP sensor
