Starter Motor - CVT: Notes

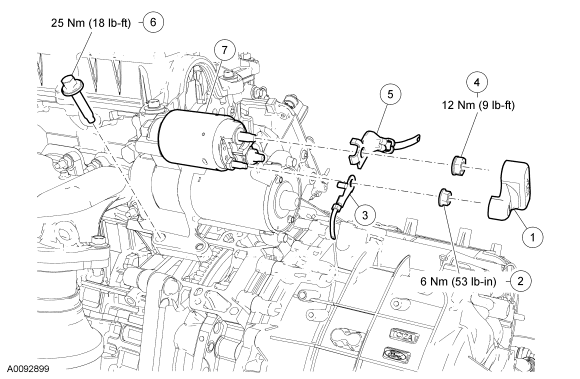

Fig 1: Exploded View Of Starter Motor - CVT With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	11N087	Starter motor solenoid terminal cover
2	N805320	Starter motor solenoid wire nut
3	14463	Starter motor solenoid wire
4	N805403	Starter motor solenoid battery cable nut
5	14452	Starter motor solenoid battery cable
6	W503297	Starter motor bolt (2 required)
7	11000	Starter motor
