Console - Front, Floor: Notes

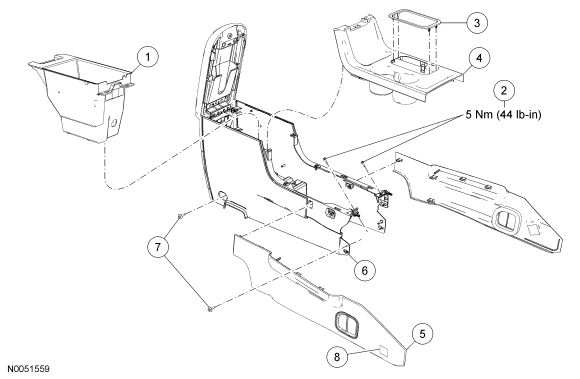

Fig 1: Exploded View Of Front Floor Console With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Front floor console storage bin
2	W505153	Front floor console screws (2 required)
3	74061A16	Floor shifter trim ring
4	74045A76	Front floor console center finish panel
5	7404608 RH/ 7404609 LH	Front floor console finish panel (2 required)
6	74045A06	Floor console
7	N804394	Floor console bolts (4 required)
8	-	Dylock pad
