Seat - Front: Notes

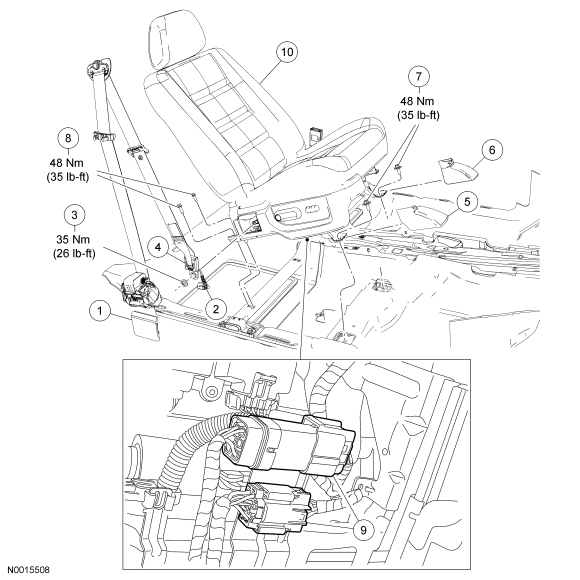

Fig 1: Exploded View Of Front Seat With Torque Specifications
GF0016416Courtesy of FORD MOTOR CO.
Item Part Number Description
1 66414 Cushion side shield cover
2 - Belt tension sensor (BTS) electrical connector (part of 611B08) (passenger seat only)
3 W520113 Safety belt anchor nut
4 - Safety belt anchor with BTS (part of 611B08 RH)/ without BTS (part of 611B09 LH)
5 622A00 Seat track front outer bolt cover
6 622A68 Seat track front inner bolt cover
7 W709428 Seat track-to-floor front bolts
8 W709622 Seat track-to-floor rear bolts
9 - Electrical connectors (part of 14A464)
10 60016 Passenger seat assembly

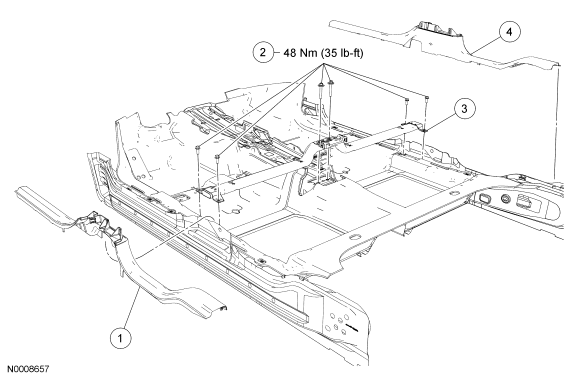

Fig 2: Exploded View Of Side Impact Protection System SIPS With Torque Specifications
GF0016417Courtesy of FORD MOTOR CO.
Item Part Number Description
1 66414 LH front and rear door scuff plate
2 - Side impact protection system (SIPS)-to-floor bolts
3 - SIPS
4 - RH front and rear door scuff plate
