Forward Clutch: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Piston Spring Compressor | 307-525 |
Material
| Item | Specification |
|---|---|
| Motorcraft Continuously Variable Chain Type Transmission Fluid XT-7-QCFT (US); CXT-7-LCF12 (Canada) |
WSS-M2C933-A |

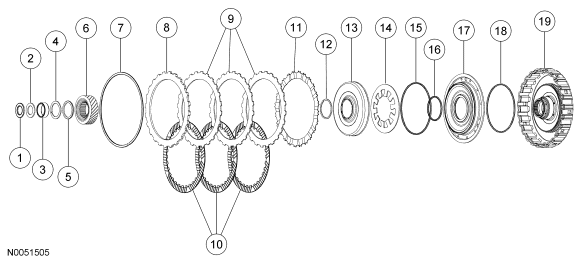

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Top roller bearing (part of 7D404) |
| 2 | - | Bearing spacer (part of 7D404) |
| 3 | - | Lower roller cage bearing (part of 7D404) |
| 4 | - | Sun gear snap ring (part of 7D404) |
| 5 | - | Sun gear spacer (part of 7D404) |
| 6 | - | Sun gear (part of 7D404) |
| 7 | 7H365 | Forward clutch plate snap ring (select fit) |
| 8 | 7B164 | Forward clutch pressure plate |
| 9 | 7B164 | Forward clutch steel plates |
| 10 | 7B442 | Forward clutch friction plates |
