Transmission Control Module -6 Connector

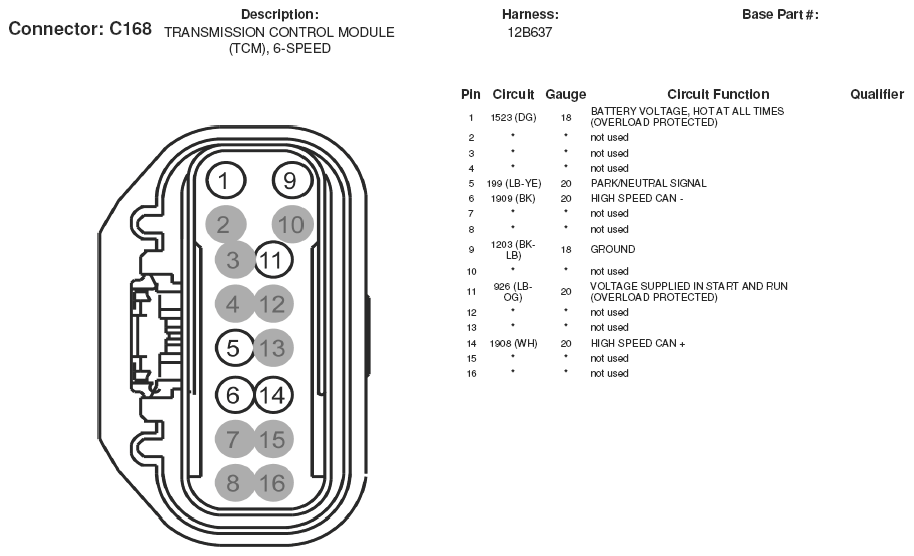

Fig 1: Transmission Control Module -6 Connector End View (C168)

G05168695

Courtesy of FORD MOTOR CO.
