Home >> Mercury >> 2007 >> Montego Base, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Liftgate Release Switch / Decklid Release Switch Connector

Liftgate Release Switch / Decklid Release Switch Connector

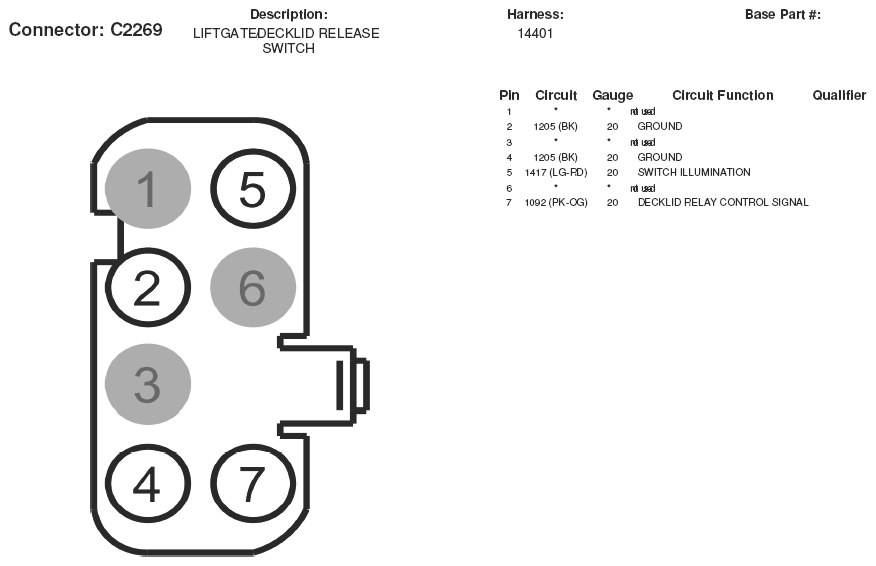

Fig 1: Liftgate Release Switch / Decklid Release Switch Connector End View (C2269)

G05168883

Courtesy of FORD MOTOR CO.
