HVAC Module DATC Connector

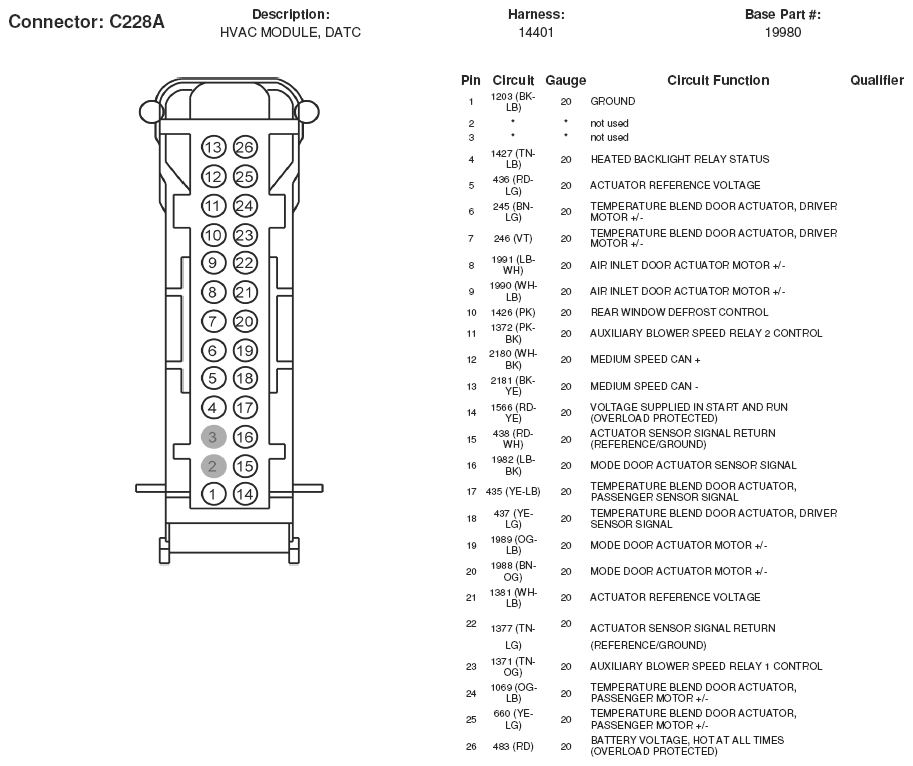

Fig 1: HVAC Module DATC Connector End View (C228A)

G05168722

Courtesy of FORD MOTOR CO.

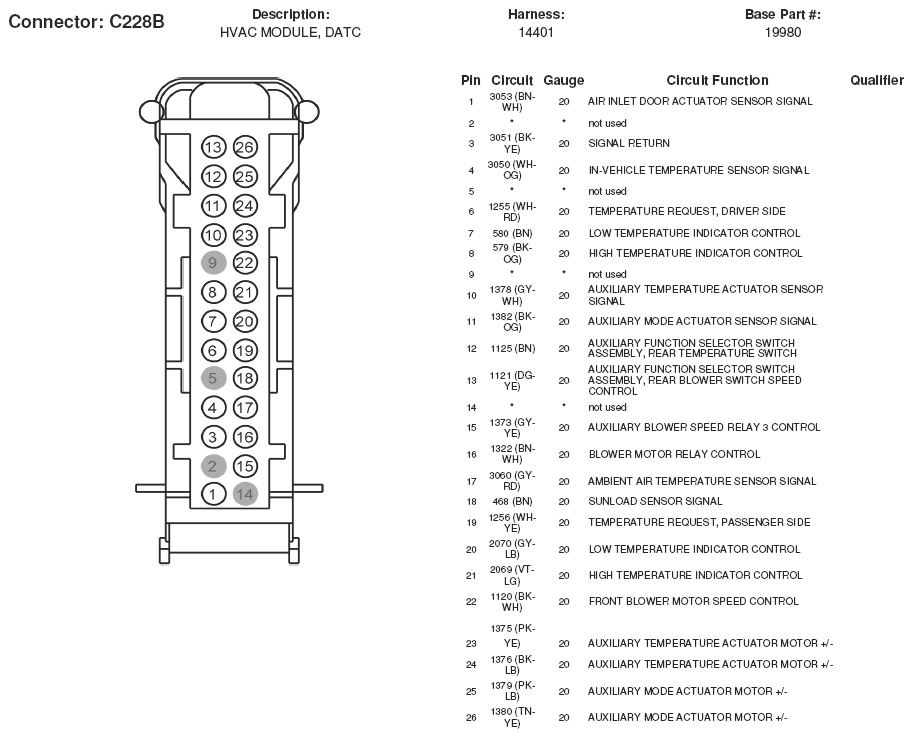

Fig 2: HVAC Module DATC Connector End View (C228B)

G05168723

Courtesy of FORD MOTOR CO.
