Electronic Throttle Control Module Connectors

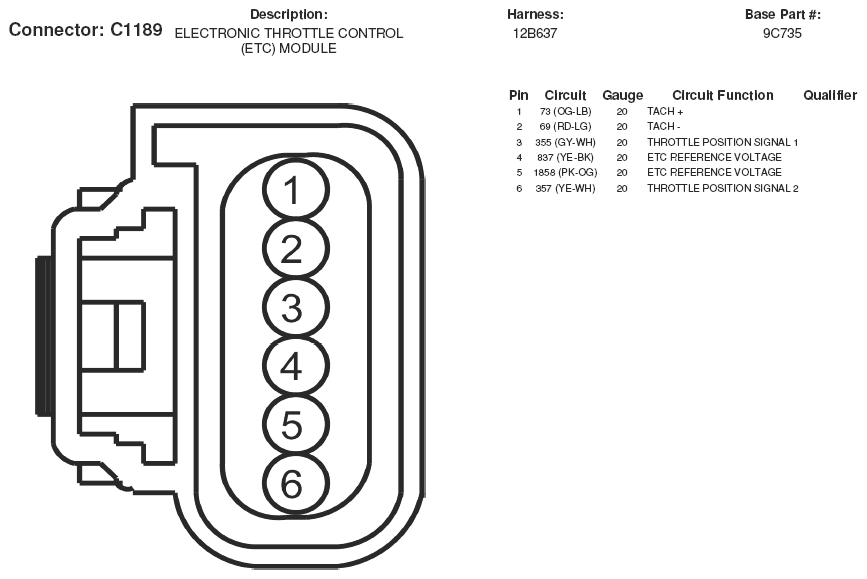

Fig 1: Electronic Throttle Control Module Connector End View (C1189)

G05168859

Courtesy of FORD MOTOR CO.
