Autolamp Sensor / Sunload Sensor Connector

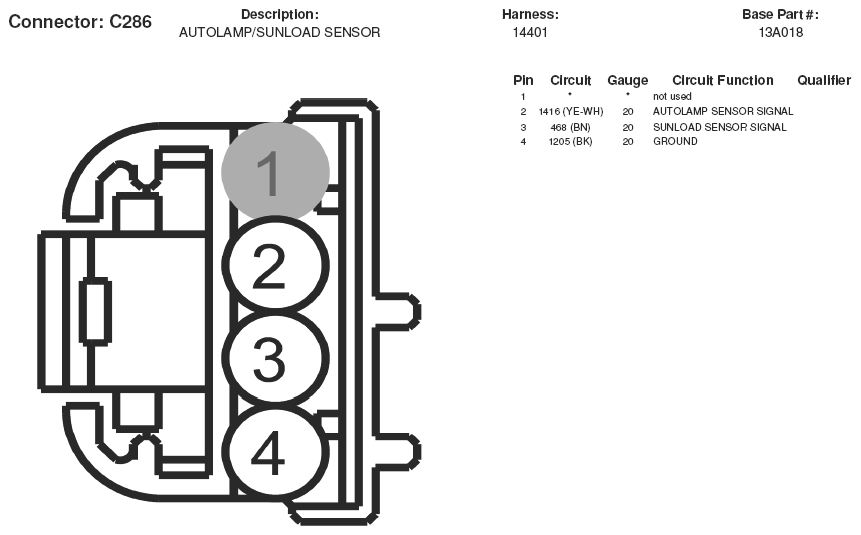

Fig 1: Autolamp Sensor / Sunload Sensor Connector End View (C286)

G05168736

Courtesy of FORD MOTOR CO.
