PINPOINT TEST DR: Camshaft Position (CMP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

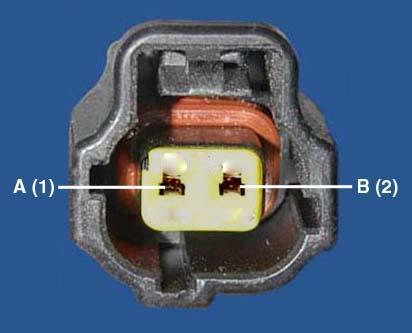

Fig 1: Camshaft Position (CMP) Sensor Connector - A

Courtesy of FORD MOTOR CO.

Fig 2: Camshaft Position (CMP) Sensor Connector - B

Courtesy of FORD MOTOR CO.

Fig 3: Camshaft Position (CMP) Sensor Connector - C

Courtesy of FORD MOTOR CO.

Fig 4: Camshaft Position (CMP) Sensor Connector - D

Courtesy of FORD MOTOR CO.

Fig 5: Camshaft Position (CMP) Sensor Connector - E

Vehicle	Connector	Pin	Circuit
Edge, Expedition, F-150 4.6L, F-150 5.4L, Mark LT, MKX, MKZ, Navigator	A	1 2	VRSRTN CMP
Escape 2.3L, Focus, Mariner 2.3L, Ranger 2.3L	B	1 2	SIGRTN CMP
Explorer 4.0L, Explorer Sport Trac 4.0L, Mountaineer 4.0L, Mustang 4.0L, Ranger 4.0L	C	2 1	SIGRTN CMP
Fusion 2.3L, Milan 2.3L	D	1 3 2	VBPWR SIGRTN CMP
Fusion 3.0L, Milan 3.0L	E	2 1	VRSRTN CMP
F-150 4.2L	D	3 1 2	PWRGND VPWR CMP
All other vehicles	A	1 2	SIGRTN CMP

Fig 6: Camshaft Position 2 (CMP2) Sensor Connector - A

Courtesy of FORD MOTOR CO.

Fig 7: Camshaft Position 2 (CMP2) Sensor Connector - B

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Edge, MKX, MKZ	A	1 2	VRSRTN CMP2
Expedition, F-150 5.4L, Mark LT, Navigator	A	1 2	VRSRTN2 CMP2
Fusion 3.0L, Milan 3.0L	B	2 1	VRSRTN CMP2
All other vehicles	A	1 2	SIGRTN CMP2

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to the REFERENCE VALUES article.

Vehicle	Connector	Pin	Circuit
Edge, MKX	190 Pin	E44 E42 E45	CMP2 VRSRTN CMP
Escape, Five Hundred, Focus, Freestyle, Mariner, Montego	150 (50-50-50) Pin	E41 E25	SIGRTN CMP
Expedition, Navigator	140 Pin	E5 E44 E4 E45	VRSRTN2 CMP2 VRSRTN CMP
Explorer 4.6L, Explorer Sport Trac 4.6L, F-Super Duty 5.4L, Mountaineer 4.6L, Mustang 4.6L	170 Pin	E44 E58 E45	CMP2 SIGRTN CMP
F-150 4.6L	190 Pin	E4 E45	VRSRTN CMP
F-150 4.2L	190 Pin	E45	CMP
F-150 5.4L, Mark LT	190 Pin	E5 E44 E4 E45	VRSRTN2 CMP2 VRSRTN CMP
Freestar/Monterey, Taurus	104 Pin	91 85	SIGRTN CMP
Fusion 2.3L, Milan 2.3L	140 Pin	E58 E45	SIGRTN CMP
Fusion 3.0L, Milan 3.0L, MKZ	140 Pin	E44 E33 E45	CMP2 VRSRTN CMP
All other vehicles	170 Pin	E58 E45	SIGRTN CMP
