Wiper and Washer System - Exploded View, Front

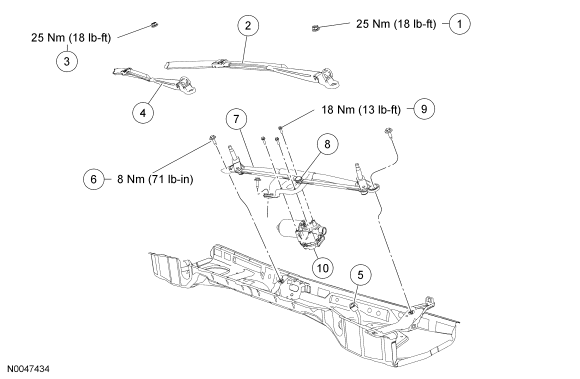

Fig 1: Exploded View Of Front Wiper and Washer System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709581	Wiper pivot arm nut
2	17C495	LH wiper arm
3	W709581	Wiper pivot arm nut
4	17B589	RH wiper arm
5	14290	Electrical connector
6	W701834	Wiper mounting arm and pivot shaft bolt (3 required)
7	17W432	Wiper mounting arm and pivot shaft assembly
8	-	Wiper pivot arm linkage
9	-	Wiper motor bolt
10	011605	Wiper motor

1. For additional information, refer to the following procedures.
