Safety Belt Retractor and Pretensioner: Notes

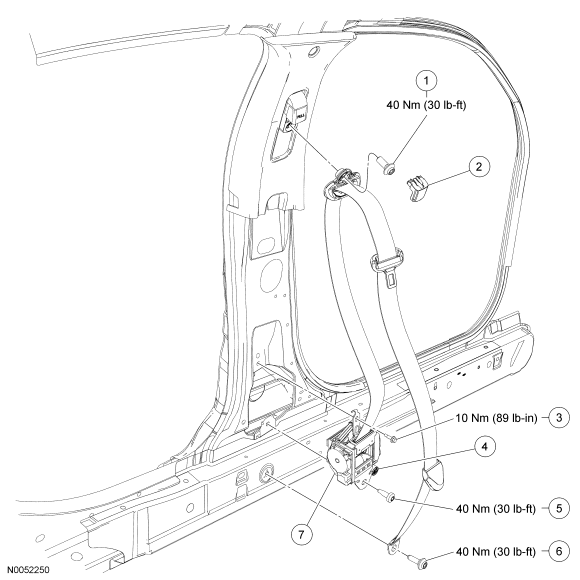

Fig 1: Exploded View Of Safety Belt Retractor & Pretensioner With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Bolt, D-ring (part of 611B09 LH/ 611B08 RH)
2	60262	Cover, D-ring
3	W505253	Bolt, safety belt retractor (upper)
4	-	Electrical connector
5	W700883	Bolt, safety belt retractor and pretensioner (lower)
6	-	Bolt, safety belt retractor anchor (part of 611B08 RH/ 611B09 LH)
7	611B08 RH/ 611B09 LH	Safety belt retractor and pretensioner
