Wheel Speed Sensor - Rear, Front Wheel Drive (FWD): Notes

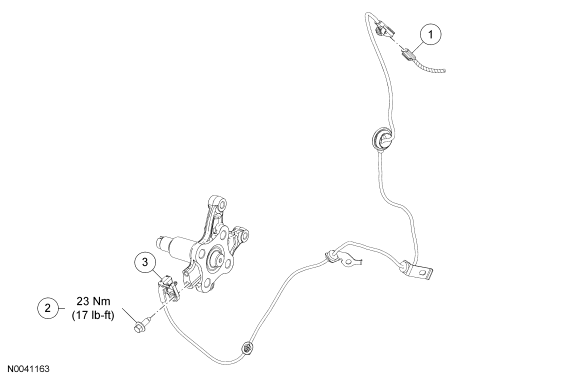

Fig 1: Exploded View Of Rear Wheel Speed Sensor With Torque Specification - Front Wheel Drive (FWD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 14A227)
2	W500222	Wheel speed sensor bolt
3	2C186 RH/ 2C187 LH	Wheel speed sensor
