Transmission Fluid Pan: Notes

Material

Item Specification
FNR5 Automatic Transmission Fluid
XT-9-QMM5		 Mazda MES MN 117C (ATF-M V)
Motorcraft Metal Surface Cleaner
ZC-21		 WSE-M5B392-A
Ultra Silicone Sealant
TA-29		 -

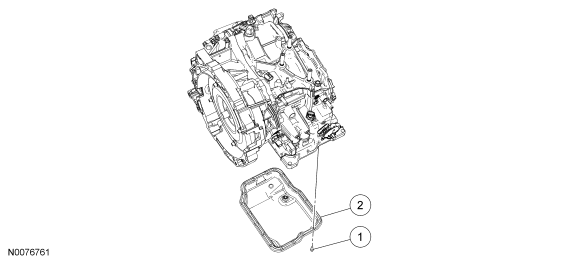

Fig 1: Exploded View Of Transmission Fluid Pan
GF0029772Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Transmission fluid pan bolts
2 7A194 Transmission fluid pan
