Ignition Transformer Capacitor 2 Connector

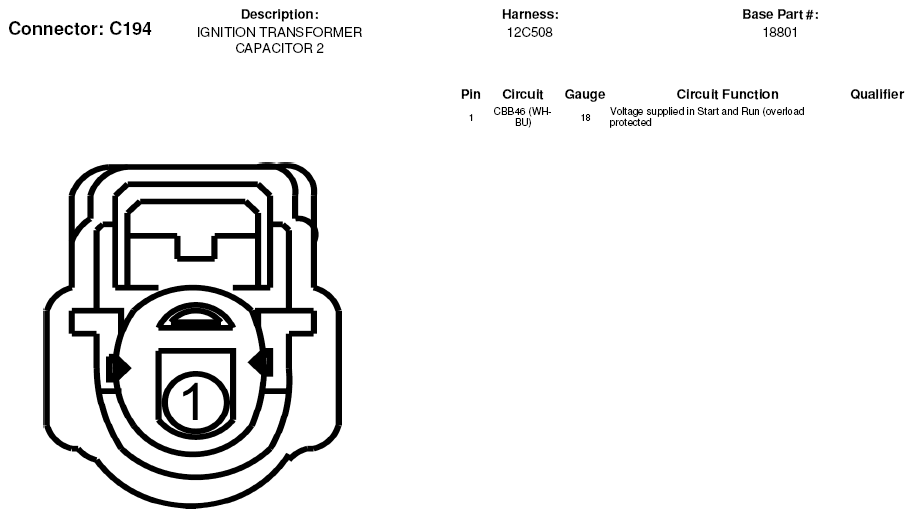

Fig 1: Ignition Transformer Capacitor 2 Connector End View (C194)

G05180601

Courtesy of FORD MOTOR CO.
