Front Blower Motor Resistor Connector

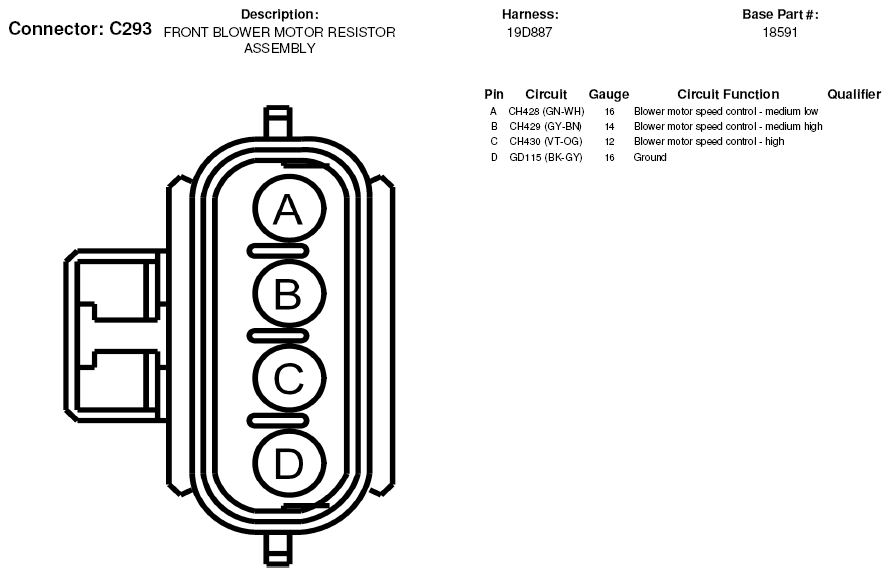

Fig 1: Front Blower Motor Resistor Connector End View (C293)

G05180642

Courtesy of FORD MOTOR CO.
