Accelerator Pedal and Bracket : Notes

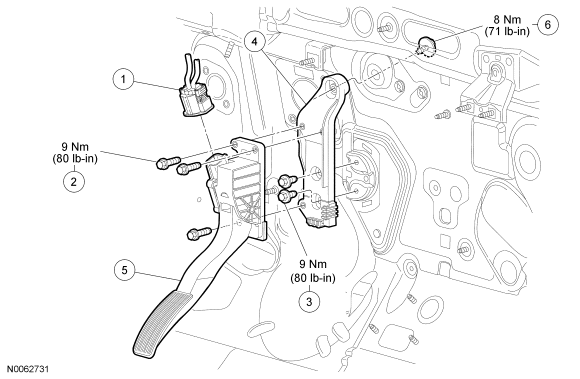

Fig 1: Exploded View Of Accelerator Pedal and Bracket With Torque Specifications
GF0025532Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal electrical connector
2 W500300 Accelerator pedal bolt (3 required)
3 9F836 Accelerator pedal bracket bolt (2 required)
4 9D823 Accelerator pedal bracket
5 9F836 Accelerator pedal
6 W706391 Accelerator pedal bracket bolt
