Accelerator Pedal and Shaft: Notes

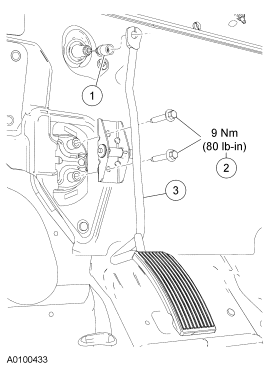

Fig 1: Exploded View Of Accelerator Pedal & Shaft With Torque Specifications
GF0025531Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9A758 Accelerator cable to pedal
2 W500300 Accelerator pedal and shaft assembly bolts (2 required)
3 9726 Accelerator pedal and shaft assembly
