Home >> Mercury >> 2006 >> Mountaineer 4.6 8, AWD >> Repair and Diagnosis >> Engine Performance >> Remove, Overhaul & Install >> Electronic Engine Controls >> Removal And Installation >> Throttle Position (TP) Sensor >> Notes

Throttle Position (TP) Sensor: Notes

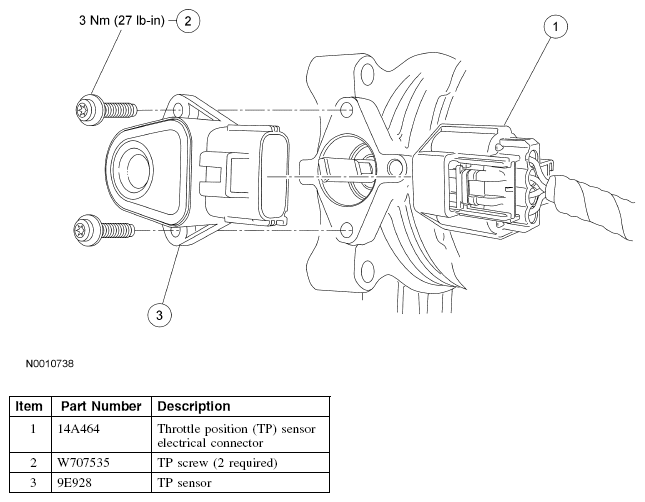

Fig 1: Throttle Position (TP) Sensor Replacement Components With Torque Specifications
G04639305Courtesy of FORD MOTOR CO.
