Powertrain Control Module (PCM): Installation

    All vehicles

  1. Install the PCM and bolts.
    • Tighten to 10 Nm (89 lb-in).
  2. Connect the PCM electrical connectors.
  3. Position the wiring harness and the A/C tube brackets and install the nuts. Connect the RH front wheel speed sensor electrical connector.
    • Tighten to 7 Nm (62 lb-in).

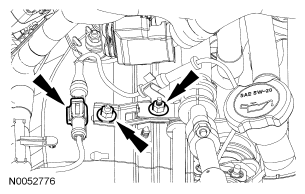

      Fig 1: Locating Nuts And RH Front Wheel Speed Sensor Electrical Connector
      G04639304Courtesy of FORD MOTOR CO.

    4. Vehicles equipped with a 4.6L (3V) engine

  4. Install the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .

    5. All vehicles

  5. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation procedure. For additional information, refer to MODULE CONFIGURATION .
  6. Reprogram the passive anti-theft system (PATS). Carry out the Parameter Reset procedure. For additional information, refer to ANTI-THEFT - PATS .
