Removal and Installation

NOTE: When installing a new stability control sensor cluster, the anti-lock brake system (ABS) module must be calibrated. Follow the scan tool directions for the calibration procedures.

Remove the pin-type retainer and the driver side floor console finish panel.
Remove the 2 bolts, 2 nuts and the LH instrument panel brace.
- To install, tighten to 9 Nm (80 lb-in).

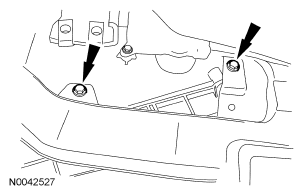

  Fig 1: Locating Bolts And Nuts
  Courtesy of FORD MOTOR CO.
Remove the 2 screws and LH heater duct.

Fig 2: Locating LH Heater Duct Screws
Courtesy of FORD MOTOR CO.
Disconnect the stability control sensor cluster electrical connector.
Remove the stability control sensor cluster electrical harness retainers and position aside.
Remove the 2 stability control sensor cluster bracket nuts and the stability control sensor cluster.
- To install, tighten to 7 Nm (62 lb-in).
To install, reverse the removal procedure.
