Interior Mirror: Notes

SPECIAL TOOL(S)

G04642106Courtesy of FORD MOTOR CO.
 Installer, Rear View Mirror
501-025 (T94P-17700-AH)
NOTE: Auto-dimming mirror is shown, non-dimming mirror is similar.

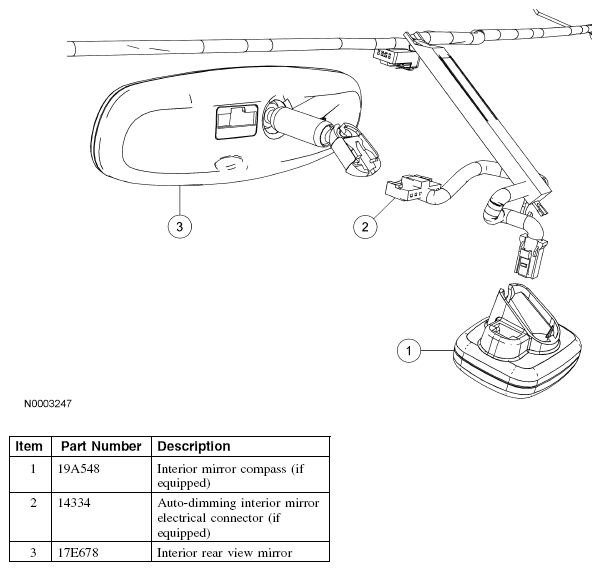

Fig 1: Identifying Auto-Dimming Mirror Components
G04642107Courtesy of FORD MOTOR CO.
