Exterior Mirrors - Exploded View

NOTE: RH shown, LH similar.

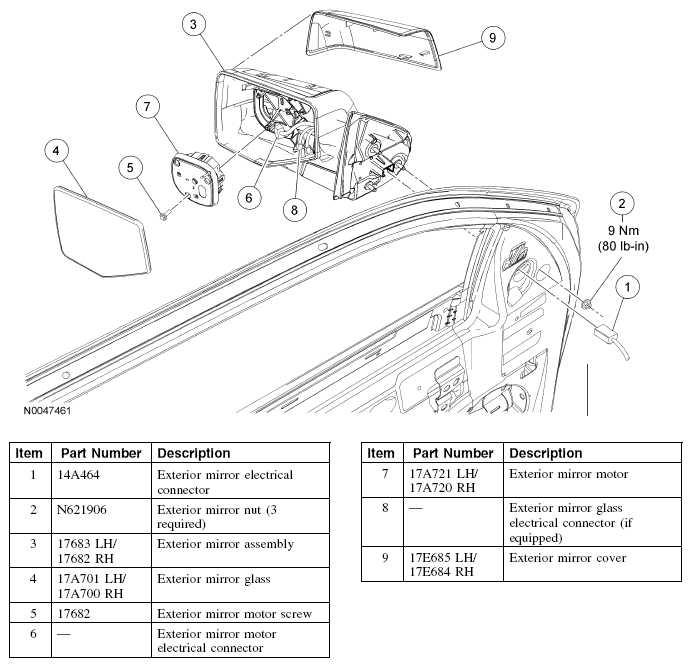

Fig 1: Exterior Mirrors - Exploded View With Torque Specifications
G04642100Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
