Stability Control Sensor Cluster: Notes

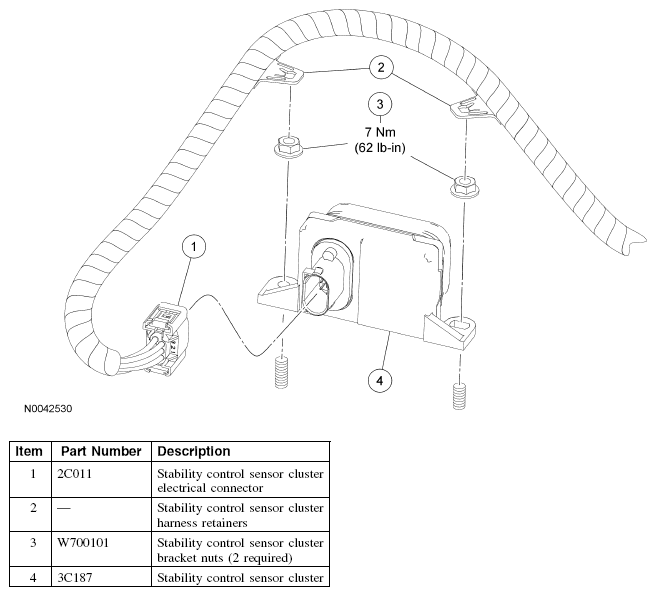

Fig 1: Stability Control Sensor Cluster Replacement Components With Torque Specifications
G04637778Courtesy of FORD MOTOR CO.
Fig 2: Locating Pin-Type Retainer
G04637779Courtesy of FORD MOTOR CO.
