Turbine Shaft Speed (TSS) Sensor: Notes

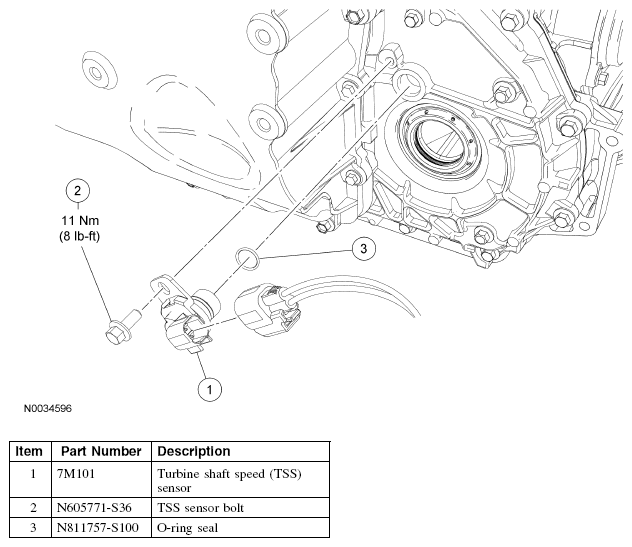

Fig 1: Turbine Shaft Speed (TSS) Sensor With Torque Specification

G04661108

Courtesy of FORD MOTOR CO.
