Removal and Installation

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Support the transmission with a suitable jack.
Remove the bolts and the anti-roll bracket.

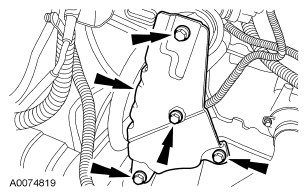

Fig 1: Locating Anti-Roll Bracket Bolts
Courtesy of FORD MOTOR CO.
Remove the rear transaxle support nut.

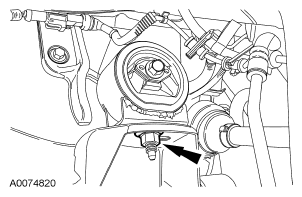

Fig 2: Locating Rear Transaxle Support Nut
Courtesy of FORD MOTOR CO.
Remove the transaxle support bolt.
- To install, tighten to 90 Nm (66 lb-ft).

  Fig 3: Locating Transaxle Support Bolt
  Courtesy of FORD MOTOR CO.
Remove the transaxle support.
To install, reverse the removal procedure.
