Transaxle Connector Layouts

Fig 1: Identifying Transaxle Vehicle Harness Connector
G04660928Courtesy of FORD MOTOR CO.

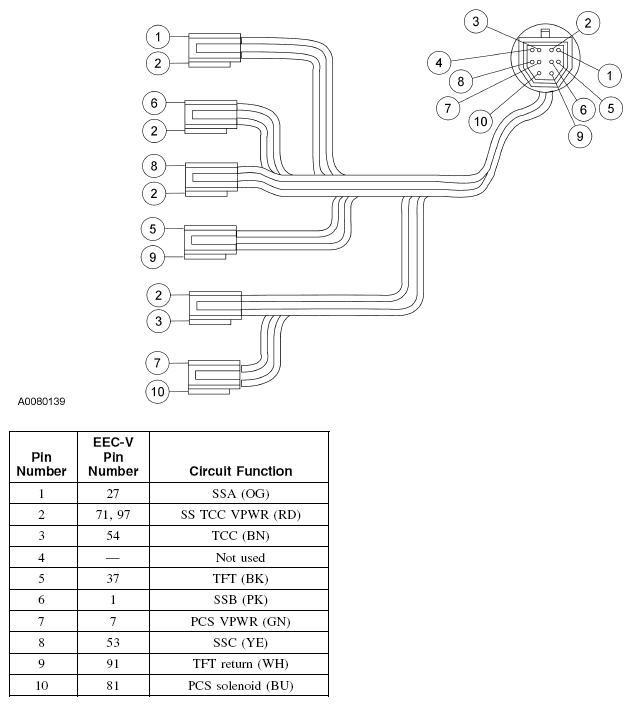

Fig 2: Transaxle Internal Harness Diagram
G04660929Courtesy of FORD MOTOR CO.

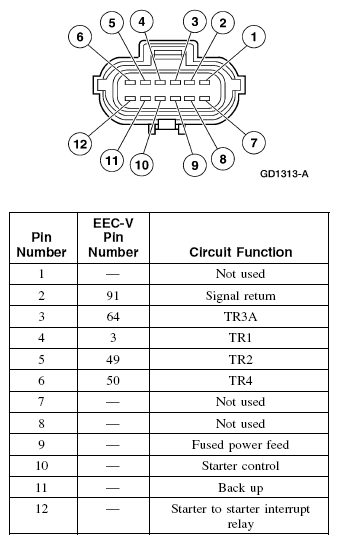

Fig 3: Identifying Digital Transmission Range (TR) Sensor Connector Terminal
G04660930Courtesy of FORD MOTOR CO.
Fig 4: Identifying Turbine Shaft Speed (TSS) Sensor
G04660931Courtesy of FORD MOTOR CO.
Fig 5: Identifying Output Shaft Speed (OSS) Sensor Connector
G04660932Courtesy of FORD MOTOR CO.
