Home >> Mercury >> 2006 >> Monterey >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System >> Removal And Installation >> Starter Motor >> Notes

Starter Motor: Notes

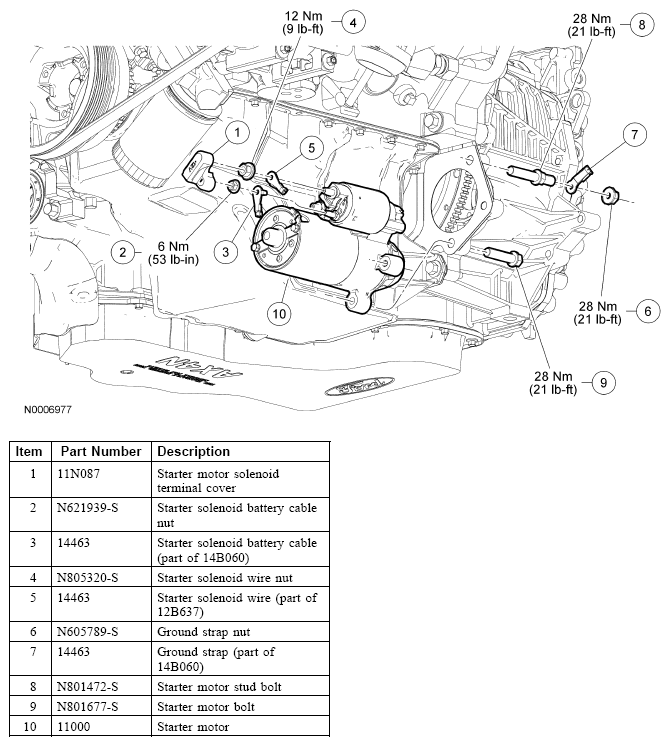

Fig 1: Identifying Starter Motor Components

G04660850

Courtesy of FORD MOTOR CO.
