Fuel Pump Module: Notes

SPECIAL TOOL DESCRIPTION

Courtesy of FORD MOTOR CO.	Lock Ring Wrench 310-123
Courtesy of FORD MOTOR CO.	Fuel Storage Tanker 164-R3202 or equivalent

MATERIAL SPECIFICATION

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

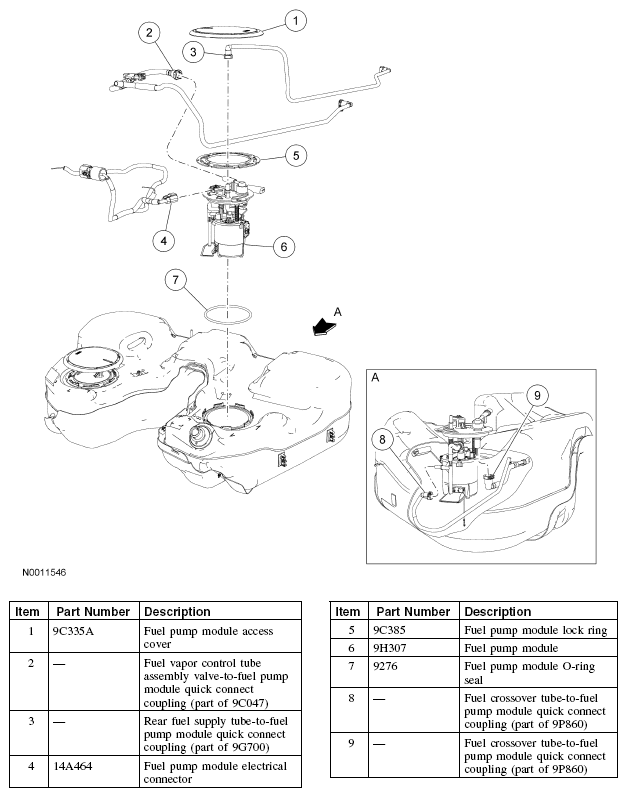

Fig 1: Identifying Fuel Pump Module Components

Courtesy of FORD MOTOR CO.
