Selector Lever Bezel: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the PRNDL trim ring.

Fig 1: Removing PRNDL Trim Ring
Courtesy of FORD MOTOR CO.
Remove the upper console panel.

Fig 2: Removing Upper Console Panel
Courtesy of FORD MOTOR CO.
Slide the lower shift knob bezel downward.

Fig 3: Sliding Lower Shift Knob Bezel Downward
Courtesy of FORD MOTOR CO.
Remove the bolt and lift up on the shift knob to remove.

Fig 4: Removing Shift Knob Bolt
Courtesy of FORD MOTOR CO.
Remove the lower shift knob bezel.

Fig 5: Removing Lower Shift Knob Bezel
Courtesy of FORD MOTOR CO.
Disconnect the light bulb from the PRNDL bezel.

Fig 6: Disconnecting Light Bulb From PRNDL Bezel
Courtesy of FORD MOTOR CO.
Release the 4 locking tabs and remove the PRNDL bezel assembly.

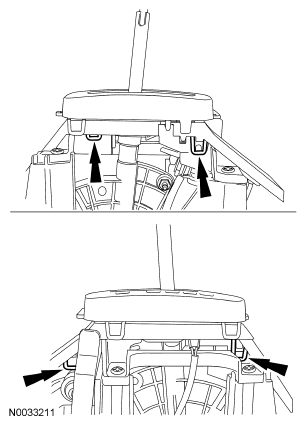

Fig 7: Identifying Locking Tabs

Courtesy of FORD MOTOR CO.
