Transmission Fluid Cooler Tubes: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft Continuously Variable Chain Type Transmission Fluid XT-7-QCFT | WSS-M2C933-A |
| Motorcraft Premium Automatic Transmission Fluid XT-8-QAW | WSS-M2C924-A |

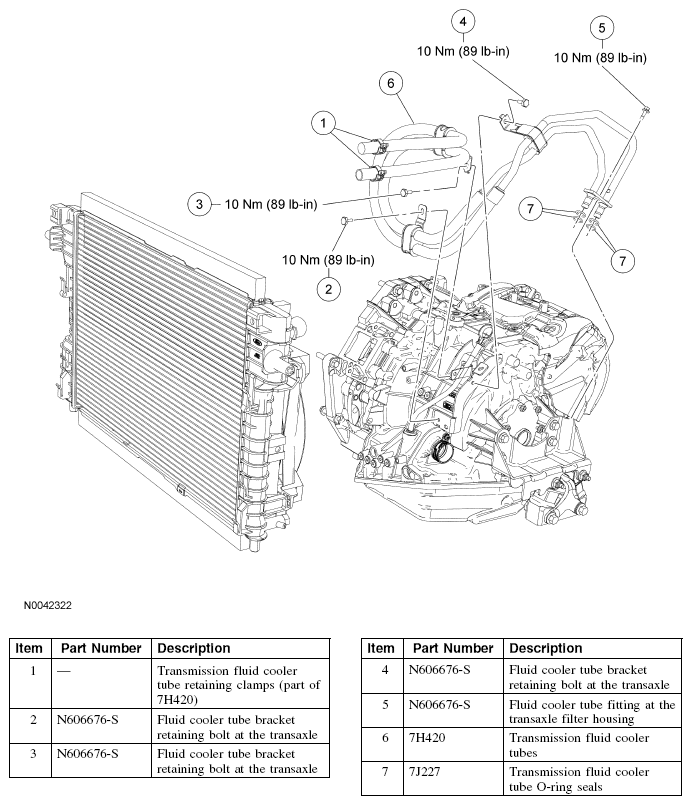

CVT Transaxle Cooler Tubes
CAUTION:
The clamps on the end of the fluid cooler tubes are glued to the tubes and are not to be removed. The clamps are part of the fluid tubes, removing the clamps from the ends will damage the fluid cooler tubes.

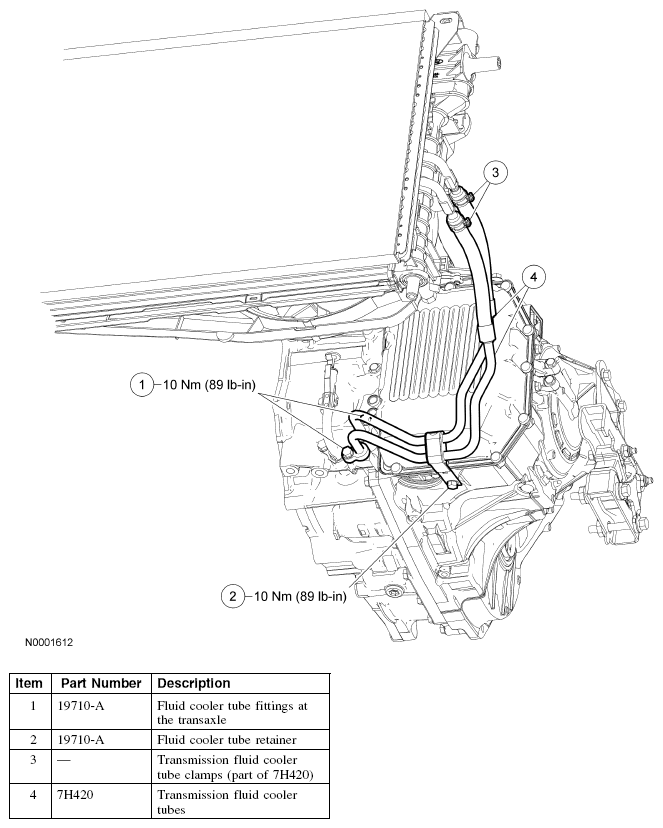

6-Speed Transaxle Cooler Tubes
CAUTION:
The clamps on the end of the fluid cooler tubes are glued to the tubes and are not to be removed. The clamps are part of the fluid tubes, removing the clamps from the ends will damage the fluid cooler tubes.
