Mercury
>>
2006
>>
Montego Base, AWD
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Removal And Installation
>>
Steering Column - Exploded View
Steering Column - Exploded View

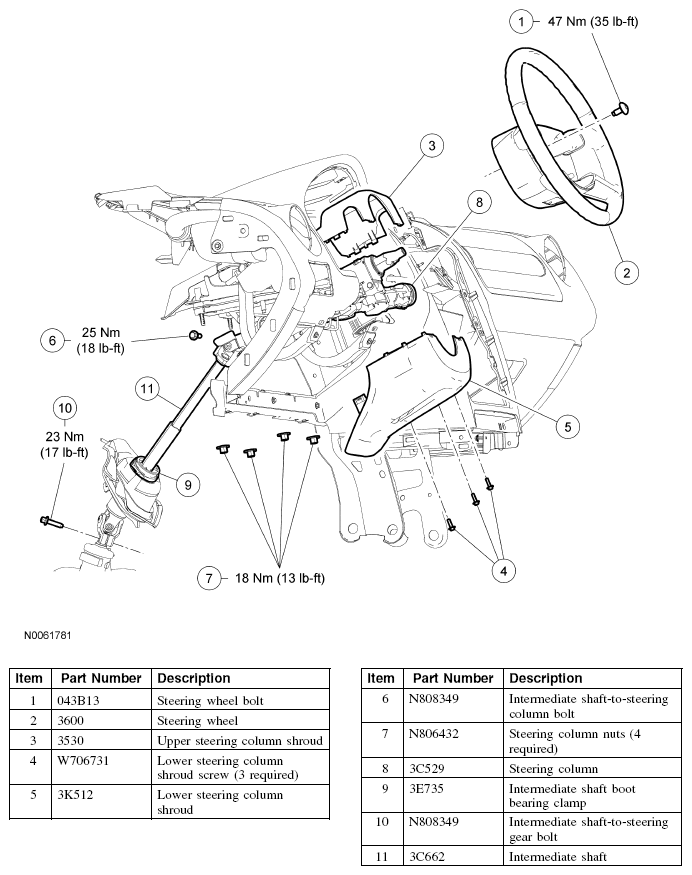

Fig 1: Exploded View Of Steering Column With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
Courtesy of FORD MOTOR CO.
