Home >> Mercury >> 2006 >> Montego Base, AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Charging & Controls >> Removal And Installation >> Throttle Body >> Notes

Throttle Body: Notes

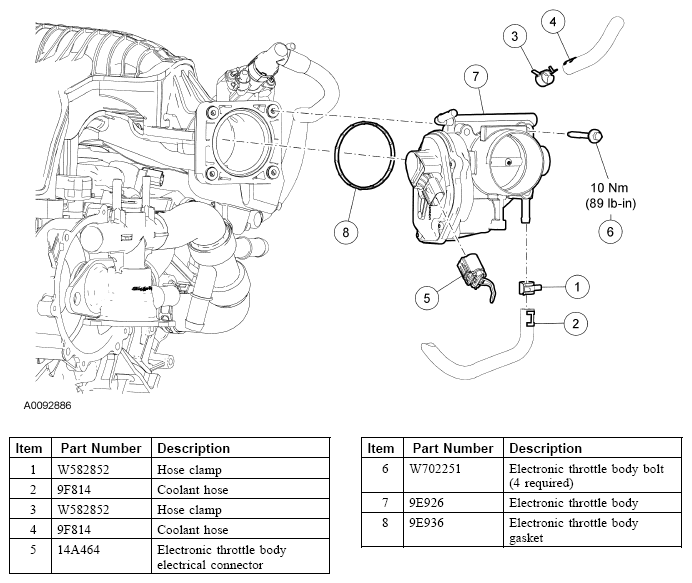

Fig 1: Throttle Body Replacement Components - Early Build With Torque Specifications
G04656122Courtesy of FORD MOTOR CO.

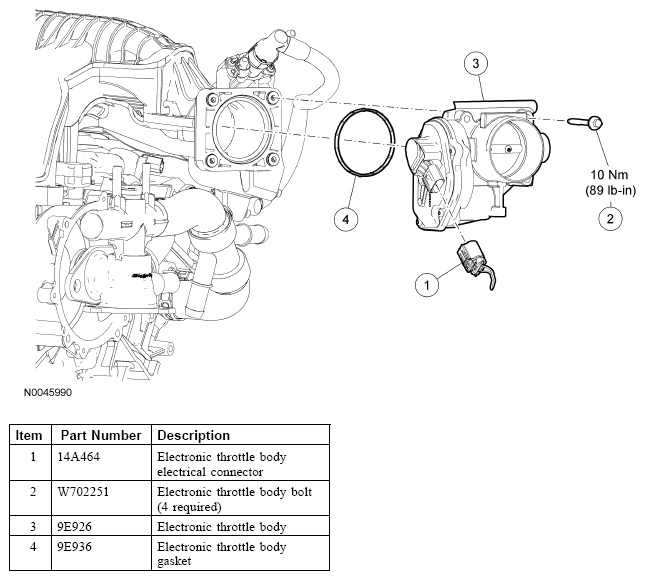

Fig 2: Throttle Body Replacement Components - Late Build With Torque Specifications
G04656123Courtesy of FORD MOTOR CO.
